New all M20 mill digital readout system - dro

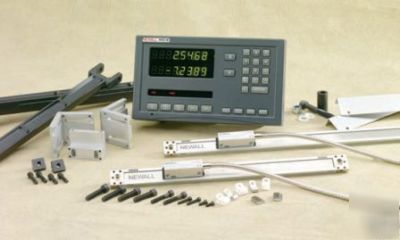

**NEW** Newall M20 digital readout system
This system list price is $939.00
System comes with a 1year Mfg. warranty.
The M20-M Milling Machine Package offers an incredible value for shop owners who thought they could never afford a quality DRO system. The readout includes salient features such as bolt hole circle routine, programmable memory and a host of other productivity enhancing features.
The M-20M Milling Machine Package includes Newall's latest addition to its encoder line. The M20-TT magnetic encoders will withstand the demands of the harsh shop environment and provide years of trouble free service you've come to expect from Newall.
Absolute/Incremental Operation
Switchable Resolutions (0.0002" or 0.0005")
Bolt Hole Circle Routine (full and partial)
Two IP67 Rated M20-TT Scales and Reader Heads
Travel Lengths: 12" x 30", 12" x 36", 16" x 30", 16" x 36"
Articulating Display Mounting Arm
Mounting Brackets and Hardware
Installation and Operators Manuals
Newall's M20-TT encoder is a fully self contained magnetic encoder that is unaffected by dirt, dust or vibration. The encoder consists of a reader head that travels along a magnetically encoded scale. Magnetic pulses are detected by the reader head and converted to a square wave output. A stainless steel strip protects the scale from the rough shop environment.
Counts through dirt, oil and water
Forgiving 0.020" gap height (+/-0.008")
Non-contact measurement utilizing reliable magnetic technology
IP67 Rated (fully submersible)
NOTE: M20 DRO and encoder assemblies are not sold seperately. Encoders are not compatible with A50, C80, C70, DP900 or older displays.
Please choose from the following M20 dro system configurations:
Package Number: M201230 12" x 30" Travel
Package Number: M201236 12" x 36" Travel
Package Number: M201636 16" x 36" Travel
My supplier stocks these systems in their office in Michagan.
