14"/ 22.25" x 40" lansing gap-type engine lathe #25743

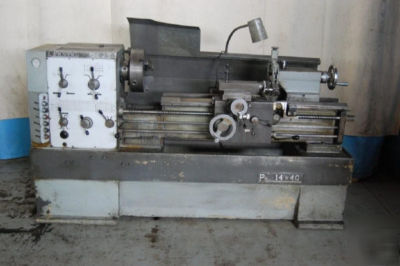

14"/ 22.25" x 40" LANSING GAP-TYPE ENGINE LATHE
12" 3-Jaw Chuck w/Jaws - 4-Jaw Chuck w/Jaws
Inch-Metric Threading - Threading Dial
Micrometer Gauging - Hard Ways
Box With Extra Jaws & Some Tooling
(32) Metric Threads - (32) Module Threads
(32) Whitworth - (32) Diametral Pitches Threads
Hole Thru Spindle...................... 1.5"
Swing Over Bed Ways, Rated............. 14"
Swing thru Gap......................... 22.25"
Swing Over Carriage.................... 8"
Distance Between Centers............... 40"
Gap Length............................. 9.5"
Tailstock, Spindle Diameter............ 2"
Tailstock, Spindle Travel.............. 6.5"
Tailstock, Spindle Taper............... #3 MT
(12) Spindle Speeds, Range............. 40 to 1800 RPM
(32) Carriage Longitudinal Feeds....... .003 to .052 IPR
(32) Cross-Slide Cross Feeds........... .0011 to .016 IPR
Main Motor, Horsepower................. 5 HP
