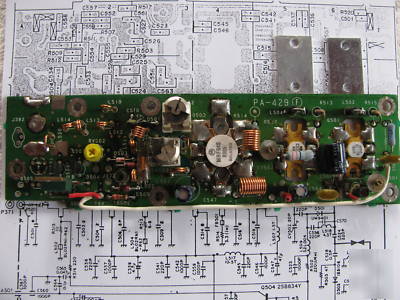

*430 mhz 30 watt f.m. r.f. power module* *used tested*
FOR SALE IS A USED, TESTED F.M. R.F. POWER AMPLIFIER MODULE THAT WILL COVER 429 TO 450 MHz
JUST 100 MILLIWATTS OF R.F. INPUT WILL GIVE IN EXCESS OF 30 WATTS R.F. OUTPUT POWER!!
THE CIRCUIT DIAGRAM, TOP AND BOTTOM LAYOUTS ARE INCLUDED
ALSO INCLUDED ARE THE NECESSARY ALUMINIUM HEATSINK SPACERS FOR THE POWER DEVICES AND THE MINI COAX FLYLEADS FOR "R.F. IN" AND "R.X. OUT"
ALL YOU NEED TO ADD IS A GENEROUS HEATSINK, 13.8 VOLTS D.C. AND 8 VOLTS +VE FOR THE TX / RX SWITCHING
IT HAS BEEN TESTED AT FULL POWER AT 430.100 MHz ON AN R.T.T. COMTEST AND IS FINE
I HAVE USED THESE SUCCESSFULLY IN THE PAST FOR REPEATER APPLICATIONS
AFTERBURNER FOR YOUR TWO WAY PORTABLE
REPLACEMENT OUTPUT STAGE FOR EXISTING EQUIPMENT
NO NEED TO GO OUT SHOPPING FOR COMPONENTS, MAKING P.C. BOARDS AND WINDING COILS ETC.,
IT JUST ARRIVES AT YOUR HOUSE!
