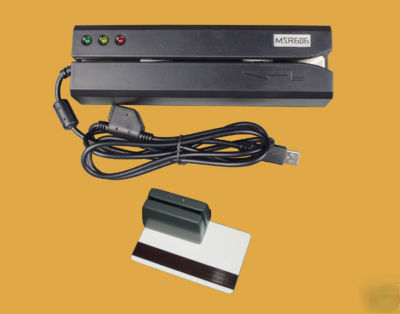

MSR606 writer & MINIDX3 reader bundle.MSR206 MINI123EX
MSR606 Writer & MiniDx3 Reader Bundle.msr206 Mini123ex
MSR606 HiCo Magnetic Card Reader Writer Encoder Com MSR206
1). Operation: -10 to 60 10 to 85% humidity, non condensing
2). Storage: -30 to 70 10 to 90% humidity, non condensing
MiniDX3 3 tracks Portable Magnetic Reader Collector Comp MSR500ex Mini123ex
1). 512 K bytes memory for storing 3000 records of data
2). 3-track version can collect all three tracks data,300-4000 oe
4). Password Protection defends user
5). Auto Power Off is set by user
6). Transfer data to MSR606 directly
7). Data downloadable to the computer via USB
9). Battery powered and low battery indicated
10). Read ISO format and special format are available upon request
11). No programming required, easy to use as 1-2-3
12). Dimensions: L 1.6 x W 0.8 x H 1.2 inch ( L 4.7 x W 2.2 x H 3.1 cm )
1). Battery Power: 3.7v 220 mAH Rechargeable Battery
4). Storage Temp: -10~55 Deg.C
5). Communication: Standard USB
1). Read card: Track1 Track2 Track3
2). Bit per density: 210 bpi 75/210bpi 210 bpi
3). Coercive force: Read 300-4000 oe Mag.card
4). Card thickness: 0.76-1.2mm
5). Read Speed: Card speed through the unit may vary from 3 ~50 ips
6). Error rate: Read < 0.5% Write < 0.8%
7). Head life Min. 1000K swipes for both read/write head
8). Certificate: CE ,FCC, Rohs
April 12, 2002, 7:08:35pm, Friday
3). 2PCS Software CD including USB Driver, Demo Software, User Manual.
5). 1PCS Power adaptor: AC 100~240V in / DC 24V, 2.2~3A out.
7). 20 Free Blank HiCo Magnetic Cards.
