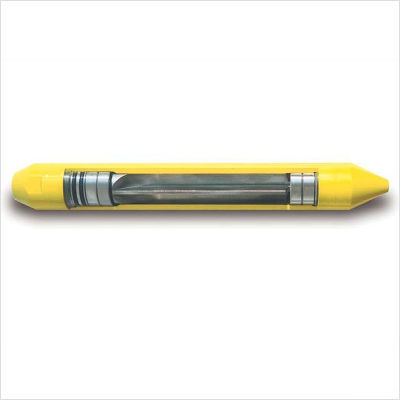

Northrock 2" vibrator head
Diameter is selected by the scope of the job and the speed required to complete it. A high level of centrifugal force and amplitude are created by rotating Northrock s unique eccentric weights within the head at the desired frequency. This 2'' Vibrator Head has a special oil bath system that keeps the weights lubricated at all times. All heads are sealed at the factory and are maintenance free. Built for the busy contractor and a wide range of tough rental applications, they are designed for reliability and durability over extended periods of time. Like other components of the system, Northrock vibrator heads are interchangeable with all other major brands on the market.
* A special oil bath system keeps the weights lubricated at all times
* Interchangeable with all other major brands on the market
* Four high performance lifetime ball bearings
* Permanent seal keeps oil in, contaminants out
* Alloy steel housing resists wear
* Scientifically-designed eccentric maximizes amplitude
* Built for the busy contractor and a wide range of tough rental applications, they are designed for reliability and durability over extended periods of time
* Centrifugal Force: 1450 lbs / 6450 N
* Amplitude to Side at Tip: .130 inches
* Radius of Influence: 22 inches
* Capacity: 35 y3/hr / 31.85 m3/hr
