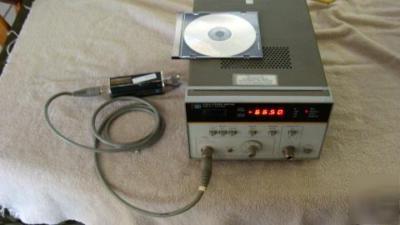

Hp/agilent 436A power meter w/opts/8484A sensor & cable
YOU WILL NEED A 30dB ATTENUATOR FOR THE END OF THE SENSOR!

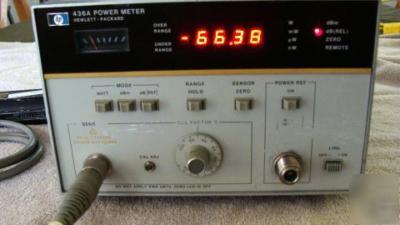

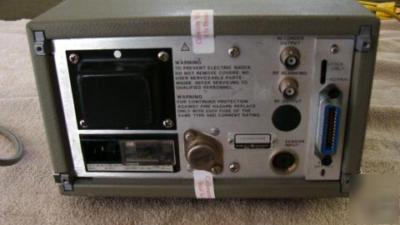

The Agilent 436A power meter is a general-purpose digital power meter intended for manual and automatic radio-frequency (RF) and microwave-power measurements. It is compatible with the entire series of 8480 power sensors. The 436A measures either absolute or relative power. It displays absolute power in either watts or dBm, and relative power in dB. The 436A offers intuitive and straightforward manual operation as well as optional GPIB programmability (Option 022) and Option 002 Rear sensor input.
FEATURES: *** Display readings in Watts, dBm or dB relative eliminating measurement conversion *** Peaking meter for analog adjustments *** Cal factor to compensate each sensor for improved accuracy *** Frequency Range: 100 kHz to 110 GHz *** Power Range: -70 to +44 dBm *** Power Accuracy: 0.5% *** Power Reference: Internal 50 MHz oscillator/Type-N output

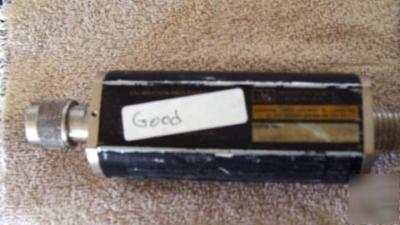

The 8484A diode power sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the 435A/B, 436A, 437A/B, and 438A power meters. It is a high sensitivity sensor operating from 10 MHz to 18 GHz at power levels from -70 to -20 dBm. It provides exceptional accuracy and stability even if your test signal is subjected to multi-tone environments, modulated carriers, or carriers with high harmonics.
An 11708A 30 dB attenuator is supplied for calibration with the power meter 0 dBm, 50 MHz reference.
