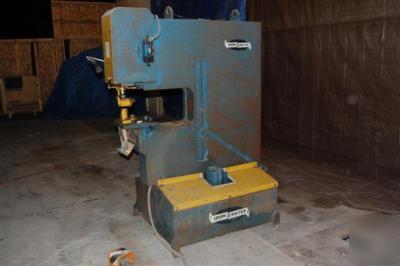

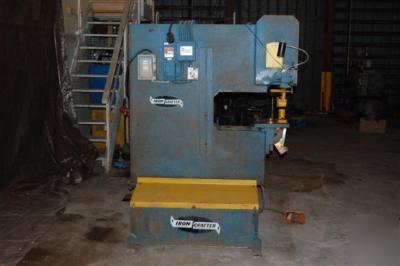

Iron-crafter hydraulic punch press
Iron-Crafter hydraulic punch press manufactured by

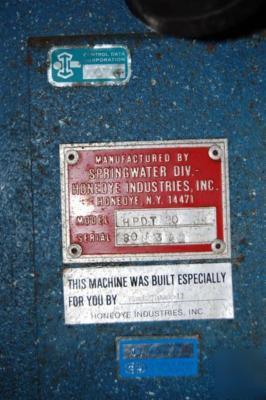

Model HPDT 20 24; Serial No. 80J342
1HP Reliance motor, 115/220V (set for 220V),
Hydraulic cylinder 2 ram, 4 stroke

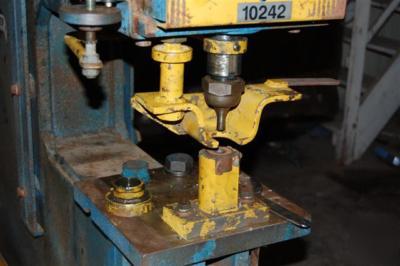

Includes punch and die as pictured
Includes 3 dia flat punch as pictured
This is a nice, clean, good working punch. It came out
of a printed circuit board plant where it had been used
with a special punch to punch x 1-3/6 test coupons
from circuit boards. The punch and die and holders and
stripper, as shown, were found stored in the base and
installed. The rated capacity is unknown. It seems to
punch A36 plate with the existing punch without
any problem. The removed circuit board punch can be
Will load it free. Can also put it on pallet with or without crating.
We are adjacent to a freight terminal and will assist in getting
Equipment can be inspected and tested at Seller s location.
All representations and descriptions are made in good faith but
