Hp agilent 6633B 100 watt system power supply 50V 2A

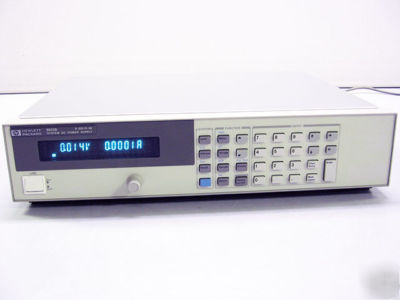

HP AGILENT 6633B 100 WATT SYSTEM POWER SUPPLY
Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single output, 80-100 W, GPIB 6631B-6634B provide fast, low-noise outputs; programmable active down-programmer sinks the full rated current; dual-range, precision low current measurement; as well as optional isolation and polarity reversal relays. The Agilent 100W, GPIB, single output 6633B is a versatile medium-power solution for automated applications that reduces development time with a combination of benchtop and system features designed for demanding design and test requirements. This unit has the following features:
* Output voltage: 0 to 50 V
* Output current: 0 to 2 A
* Programming Accuracy at 25 C 5 C
* Ripple & Noise (20 Hz to 20 MHz, with outputs ungrounded or with either terminal grounded)
* Voltage Normal mode rms: 0.5 mV
* Voltage Normal mode peak-to-peak: 3 mV
* Fast mode rms/peak-to-peak: 1 mV/15 mV
