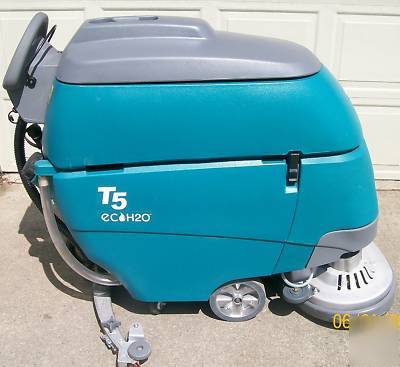

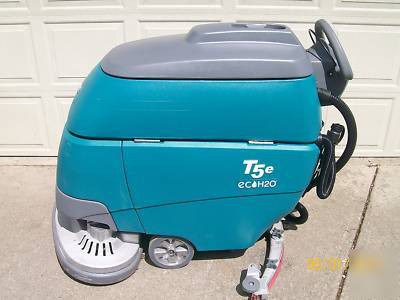

Tennant T5 28" 700MM walkbehind floor scrubber w/ec-H2O
INCLUDED IN THE PURCHASE IN ADDITION TO THE SCRUBBER SHOWN WILL BE A BRAND NEW PAIR OF POLY SCRUB BRUSHES.
LOCAL PICKUP IS AVAILABLE FOR THIS ITEM.
BELOW IS THE SPECS FOR THIS UNIT FROM TENNANT.
Solution tank capacity 22.5 gal / 85 l
Theoretical Max 30,800 ft2 / 2,900m2
Estimated Coverage (conventional) 20,800 ft2 / 1,900 m2
Conventional Mode Option (3 settings)
.33 gpm / 1.25 lpm & .44 gpm / 1.66 lpm
.30, .40, .50 gpm / 1.1, 1.5, 1.9 lpm
Scrub Motors (2) 0.75 hp / 0.56 kW
Brush / pad down pressure (3 settings) 40, 80 & 120 lb / 18, 36 & 54 kg

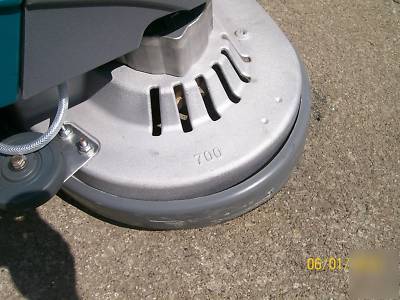

Brush / pad driver quantity & size (2) 14 in / 356 mm
Environmental Impact (Annually) ****
Chemical use reduction 154 gal
Recovery tank capacity 27 gal / 102 l

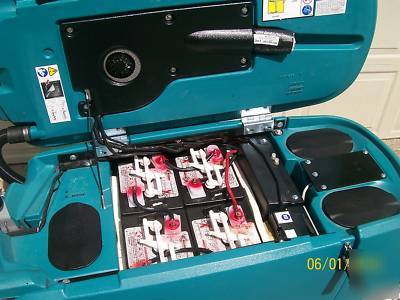

Batteries (24 V system, charger
(4) 6V, 235 AH / Up to 5.5 hours
Scrubbing / Transporting (full) 3.0 / 5.0

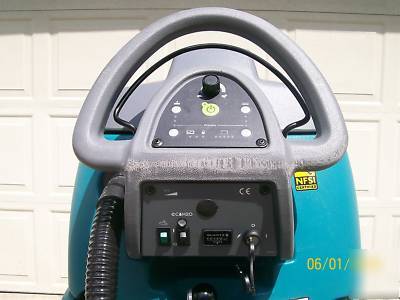

Speed Control Top Speed Potentiometer & Variable Speed Trigger
Dimensions / Weight / Sound level
With batteries (4) 6V 235 AH 609 lb / 276 kg
Minimum aisle turn: 59 in / 1,499 mm
Sound level*** (operator s ear) 67 dBa
* Estimated coverage rates use the practical speed and empty/fill time standards from the 2004 ISSA Cleaning Times handbook.
** Run times are based on Continuous Scrubbing Run Times.
*** Sound levels per ISO 11201 as recommended by the American Association of Cleaning Equipment, Manufacturers & OSHA
**** Estimates based on requiring, at minimum, 1.5 tanks to clean the facility / area per day. 2 oz of chemical per gallon of water and
scrubbing 5 times per week or 260 times per year.
ec-H2O is certified to provide high traction by the National Floor & Safety Institute
