New centaur 2-door controller ct-V900-a cdvi cdv

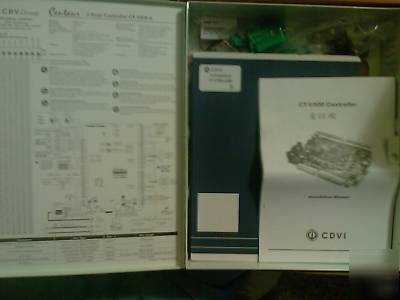

BRAND NEW PANEL BOX with main board and accessories, manuals, etc
The Centaur Server, hardware expansion modules, multi-purpose inputs, card readers, keypads and outputs are connected directly to the CT-V900-A. Multi-controller systems are networked via the RS-485 communication bus (or using the optional CA-ETHER-A over a TCP/IP network). Distributed database architecture allows each controller to make split-second decisions without the need for the Centaur server. Lightning-quick, robust and remarkable stability make the CT-V900-A the professional s choice.
Control 2 doors (Reader In / REX Out) or 1 Door (Reader In / Reader Out)
Add up to 6 more doors to the CT-V900-A using the CA-A470-A expansion module
10,920 on-board card database
16 on-board inputs (*using ATZ 2R/3R)
2 on-board 12 Vdc or 24 Vdc field-selectable lock outputs
2 on-board Form C dry contact relay outputs (N/O - N/C)
Fully distributed database architecture (access decisions made locally)
Flash firmware - Upload firmware via the Centaur Server
E-Bus technology add-on hardware modules can be up to 1220m (4000ft) away from the CT-V900-A
Supports common Wiegand, Track 2 ABA (mag stripe) and BCD (keypad) formats
Easy maintenance with snap-off terminal blocks
Battery backup functionality (2 x 12V 7AH gel-type batteries)
Lithium battery protection in case of complete power failure
RS-485 controller - expansion module network (9.6k or 19,2k baud)
Connect modules up to 1220m (4000ft) away from the controller
RS-232 support to communicate with the Centaur software via serial port, dial-up or LAN
