8" w 18" l acer supra 818AHD surface grinder, 3 axis au
8" W 18" L Acer SUPRA 818AHD SURFACE GRINDER, 3 Axis Au
8" Width 18" Length Acer SUPRA 818AHD SURFACE GRINDER, 3 Axis Automatic, 3 HP Spindle

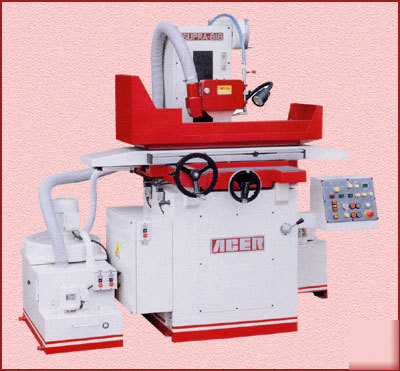

ACER SUPRA 818AHD SURFACE GRINDER
Auto Increment Downfeed: 0.00005" - 0.002" (40 steps)
Grinding Wheel: 8" x 1/2" x 1-1/4"
Vertical Graduation: 0.0001" (Direct Dial)
Dynamically balanced 3 HP spindle motor.
Front mount spindle with run-out withing 0.00008".
Overall flatness within 0.00012" at 8" x 18" grinding
Revolutionary sensor triggering directional control valve.
Safety 24-volt, microprocessor controlled circuit.
Bello-type cover on crossfeed leadscrew.
Fully ribbed machine base and column.
Two speed rapid elevation control.
Precise stepping motor for downfeed increment control -
Recirculating auto lubrication system for all slideways and
9 position indexible table handwheel.
Special vacuum heat treated slideways at hardness up to HRC
Double-V lining crossfeed ways at 19.6" apart.
FC 25 high tensile iron weighing at 2,850 lbs.
1 PC WHEEL BALANCING BASE 1 PC WHEEL BALANCING ARBOR
1 PC GRINDING WHEEL 1 PC WHEEL FLANGE
1 PC DIAMAOND DRESSER 1 PC HALOGEN WORK LIGHT
1 SET TOOLBOX WITH TOOLS 1 SET SPLASH GUARD
ACER 8" X 18" PERMANENT MAGNETIC CHUCK
"WALKER" 8" X 18" PERM MAG. CHUCK (FINE POLE)
"WALKER" 8" X 18" ELECTRO FINE POLE CHUCK
COOLANT SYSTEM W/ PAPER FILTER
COOLANT SYSTEM W/ MAGNETIC SEPERATOR &
NEWALL 2-AXIS DRO (8" X 18" TRAVEL,0.0001"
SONY 2 AXIS DRO (8" X 18" TRAVEL, 0.00002"
8" x 18" Permanent Magnetic Chuck
Coolant System with Dust Suction
