100 ton hydraulic press. dension gap frame w/controls
DENISON HYDRAULIC GAP FRAME PRESS
100 Ton Model FX100-C592E - NEW 1987
With/4 Post Die Set & Hydraulic Ejector - Floor Standing - Bed Area: 36" L-R x 26" F-B
Stroke: 0 - 15" Maximum - Daylight Opening (Total): 30" Maximum - Throat Depth: 14"
Ram Diameter: 8.5"/6" @ 3525 PSI - 100 Tons - Floor to Top of Bed: 32"
Power Unit: Denison Model T5DC038014 Hydraulic Pump - Driven by 100 HP 1730 RPM
230/460/3/60 Motor - Speeds Approx.: 250"/Min. Closing - 122"/Min. Pressing to 100 Tons

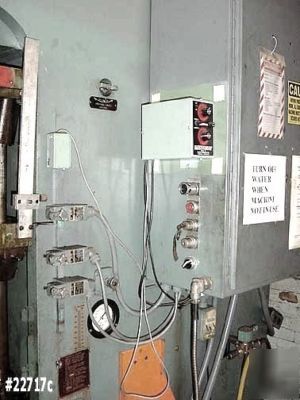

248"/Min. Return - Controls: Pushbutton Operation w/Stroke & Pressure Control
Dual Palm Buttons - Inching Control - Pressure Gauge
Weight approx. 18,000# - Overall Dimensions Approx. 65" L-R x 50" F-B x 116" H
