10" dia. 30" l sharp OD1030S od grinder, automatic infe

10" Dia. 30" L Sharp OD1030S OD GRINDER, Automatic Infe

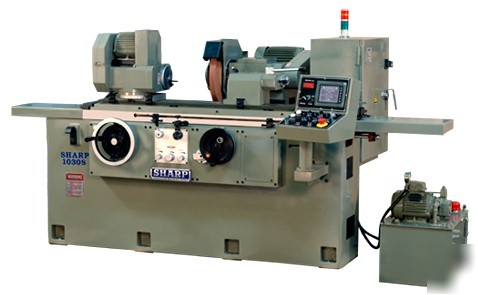

10" Dia. 30" Length Sharp OD1030S OD GRINDER, Automatic Infeed system
NEW SHARP UNIVERSAL CYLINDRICAL GRINDER
w/Servo Driven Ballscrew, Touch Screen Control
Automatic Wheelhead Infeed System
Maximum grinding diameter: 10"
Maximum load between centers: 280 lbs.
Auto infeed range: 0.0001" - 0.04"
Rapid forward and retract: 1.6"
Manual feed, graduation (dia): 0.08"
Manual feed, revolution (dia): 0.0002"
Diameter x width x bore: 16" x 1.5" x 5"
Spindle speed (infinitely variable): 50 - 350 RPM
Auto feed (variable speed): 2 - 160 IPM
Swivel towards operator: 4 deg
Weight (approximately): 5,200 lbs.
* Other Models Available: 6, 8, 12, and 14" swing; 18-100" capacities
- Fixed and rotary type spindle on workhead
- 3 Jaw (6") jaw chuck with backplate
- Magnetic chuck (6") with backplate
- Touch probe* Angle truing attachment
- Coolant system with magnetic separator
