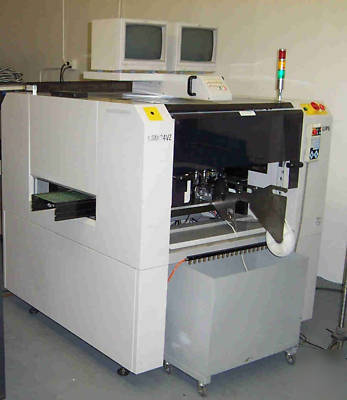

Philips CSM84VZ surface mount smt machine
Philips CSM 84VZ Pick & Place Machine
8" x 16" with "Vision" Camera System
Placement Rate up to 6500 C.P.H.
PC controller, w/ RS-232 port.
Hand held teach pendant.
457mm x 406mm (18"x16") maximum PCB size.
3- placement heads: 2- chuck centering, 1- vision.
Bottom side SMC Camera
Component range: 1005 (0402) to 56mm; 12mil minimum lead pitch.
84 - 8mm feeder inputs maximum on Machine (100 w/LCS included ).
Maximum placement speed is 0.55 sec./comp. or 6,500 CPH
