Hughes 45112H-1000 isolator, NSI5350W noise source more

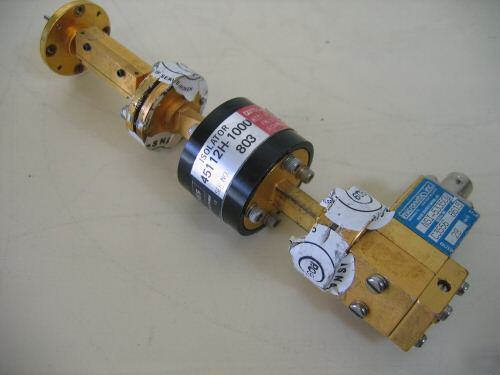

Hughes 45112H-1000 Isolator, Hughes 45742H-1010 Waveguide Fixed Attenuator and Micronetics NSI53350W Noise Source (or NoiseCom NC5322)

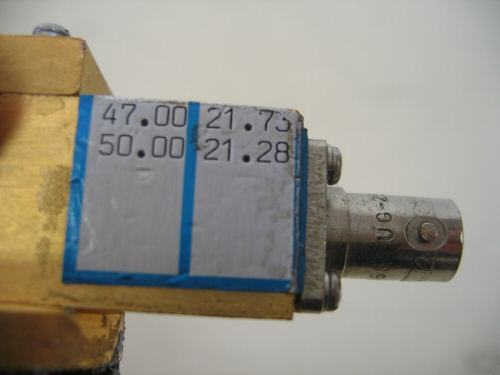

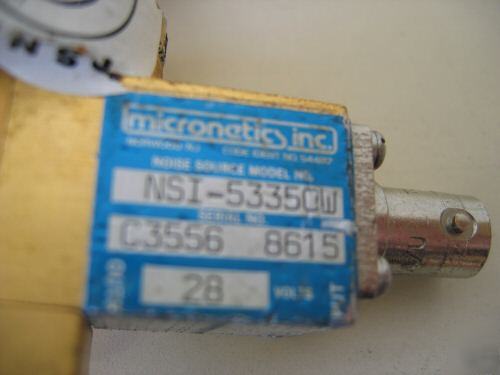

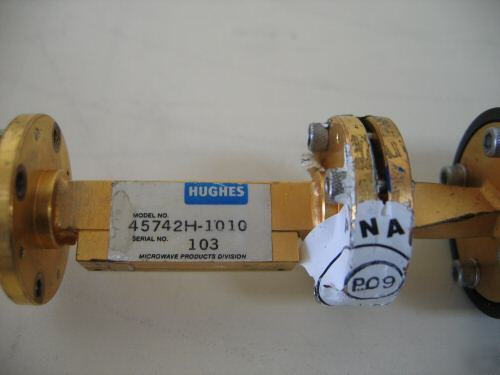

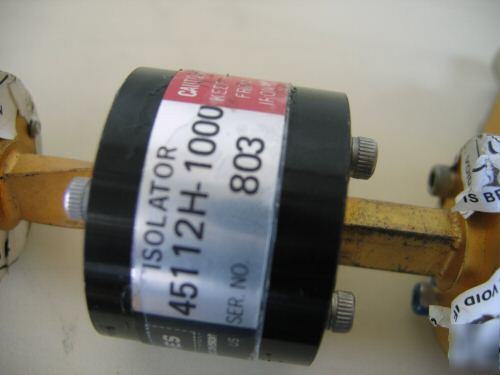

* Description: The Hughes 45112H-1000 is a WR-22 Full Band Isolator, 25 dB isolation and 1.5 dB insertion loss. The Hughes 45742H-1010 is a WR-22 a full band Waveguide Fixed Attenuator. And the Micronetics NSI-53350W or NoiseCom NC5322S is a 33 to 50 GHz Waveguide Noise Source with the following characteristics:
* RF Output Excess Noise Ratio: 21 dB
* Flatness: 2 dB typical and 3 dB Max
* Power Requirement Max: +28V, 20mA
* Working Condition: Untested
* Other Comments / Notes: We have two of these. One has the Micronetics NSI-53350W Noise Source and the other has the NoiseCom NC5322S Noise Source (If you have a preference be sure to specify before purchase and to ensure we still have the one you want).
* Warranty: 3-day DOA. (See below for further details).
