> 20" x 60" okamoto hydraulic surface grinder, s/n # 1930
20" x 60" okamoto hydraulic surface grinder, s/n # 1930

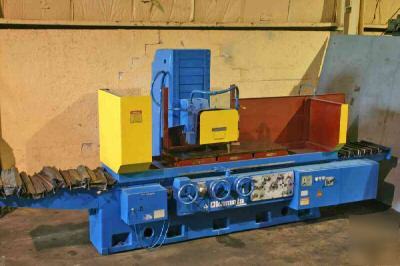

20" X 60" OKAMOTO HYDRAULIC SURFACE GRINDER
SERIAL .............................. 1930
MODEL ............................... PSG-155B
YEAR NEW ............................ 1988
CAPACITY ............................ 20 X 61
MAXIMUM UNDER NEW WHEEL ............. 23-1/2
HYDRAULIC TABLE TRAVEL, VARIABLE .... 1 TO 100 FPM
AUTOMATIC HYDRAULIC CROSS FEED ...... 20 TO 1.37
CONTINUOUS CROSS FEED, VARIABLE ..... 1 TO 16.4'
INCREMENTAL DOWN FEED ............... .0002 TO .002
POWER SPINDLE ELEVATION (RAPID) ..... 12 IPM
DIAMETER OF GRINDING WHEEL .......... 20 X 2 X 5
MAGNETIC CHUCK ...................... 20 X 60 X 4-1/2
VARIABLE HOLD CHUCK CONTROLLER ...... YES
OVER WHEEL DRESSER .................. YES
SPINDLE MOTOR ....................... 10 HORSEPOWER
HYDRAULIC DRIVE MOTOR ............... 7-1/2 HORSEPOWER
