New luggage stretch wrapping film wrapper machine -

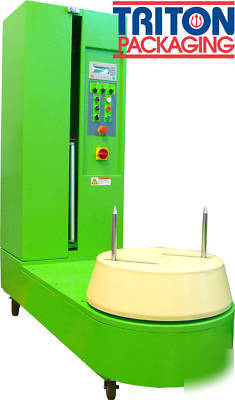

NEW - LUGGAGE WRAPPING MACHINE
Wrap Luggage Quickly, Securely and Cost-Effectively
Protect and secure luggage and boxes by wrapping them with stretch film. Our STR-5000N automatically wraps products of different sizes and weights. This easy to use machine can be moved with ease to wherever its needed. It uses standard 20" (500mm) stretch film rolls, which are inexpensve and easy to find.
Securely protects product from theft, breakage, rain and condensation
Can wrap large and small pieces of luggage or packages of almost any shape
Fully contained in one rugged and compact unit
Uses rolls of 20" (500mm) wide stretch film, a ubiquitous and inexpensive material
Film can be of any color from transparent to black
Extremely easy to operate, minimal operator training is required
Equipped with braking rolling casters, for ease of movement
Easy to move or quickly situate at the best locations by a single operator
Does not require bulky and power-hungry heating systems
* Powered pre-stretch film delivery system
* Easy adjust luggage base for one-handed operation
* Maximum package weight: 170 lbs (80 Kg).
* Stretch film width: 500 mm (20")
* Film max. thickness: 0.001 inches (0.035mm), when stretched
* Adjustable platform speed: Up to 20 rpm
* Load size: 10~47" (250~1200mm) x 8~16" (200~400mm) x 10~47" (250~1200mm) H
* Password protected controller
* Turn plate frequency modulation switch
* Film lifter frequency modulation switch
* Pre-stretch frequency modulation switch
* Manual/Auto mode toggle switch
* Manual mode turn plate run/stop switch
* Manual mode film lifter up/down switch
* Electronic eye sensor for automatic product weight detection
* Programmable film wrapping parameters
* Machine Size: 63" (1600mm) x 24" (600mm) x 68" (1740mm)
* Turntable diameter 21.6" (550mm)
* Machine Weight: 243 lbs (110 Kg)
* Boxed Size: 66" (1676mm) x 26" (660mm) x 74" (1880mm)
* Boxed Weight: 278 lbs (126 kg)
* Working conditions: Humidity<98%, Temperature 0-104 F (0-40 C)
