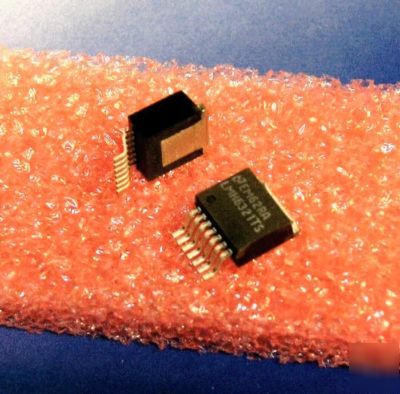

LMH6321 110MHZ hi speed hi curent buffer 1800V/us TO263
300mA High Speed High Current Buffer
The LMH6321 is a high speed unity gain buffer that slews at 1800 V/ s and has a small signal bandwidth of 110 MHz while driving a 50? load. It can drive 300 mA continuously and will not oscillate while driving large capacitive loads.
The LMH6321 features an adjustable current limit. The current limit is continuously adjustable from 10 mA to 300 ma with a 5 mA 5% accuracy. The current limit is set by adjusting an external reference current with a resistor. The current can be easily and instantly adjusted, as needed by connecting the resistor to a DAC to form the reference current. The sourcing and sinking currents share the same current limit.
