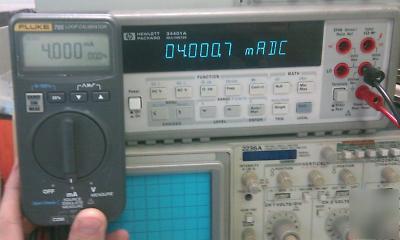

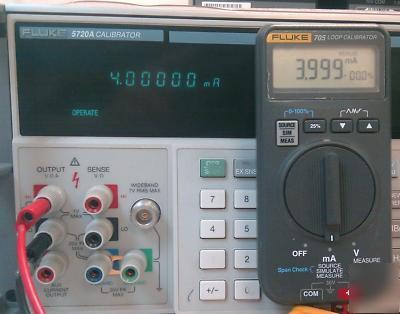

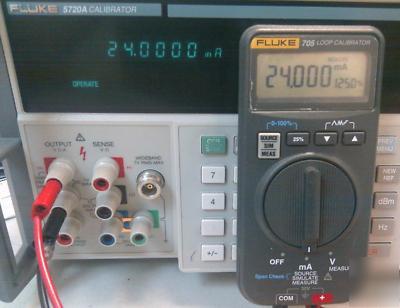

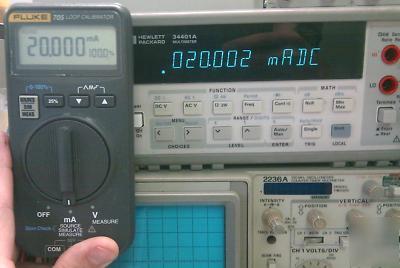

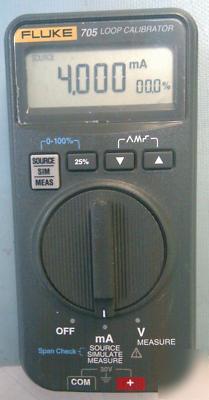

Fluke 705 loop calibrator dmm cal'd
The new Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of current loops. It features:
* mA sourcing, simulation and measurement with 0.02% accuracy and 0.001 mA resolution
* Simultaneous mA and % of span display
* Selectable step or ramp outputs
For a powerful loop calibrator at a very affordable price, choose the new Fluke 705 Loop Calibrator. This feature-rich solution to loop calibration, maintenance and repair offers:
* A large display and simple, pushbutton interface for ease of use.
* Simultaneous mA and % readout for quick, easy interpretation of readings.
* Push button 25% steps for fast, easy linearity checks. Save time over traditional knob type controls.
* "Span Check" for fast confirmation of zero and span.
* Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
* Single 9V battery that is easily changed.
* 0 - 20 mA or 4 - 20 mA default start up modes.
Summary Specifications (18 C to 28 C for one year)
Notes: Max load, 1000 Ohms, Max applied voltage for simulation, 30V
-10 C to 18 C, 28 C to 55 C, .005% of range per C
0 to 90% (0 C to 35 C); 0 to 70% (35 C to 55 C)
EN50082-1:1992 and EN55022:1994 Class B
152 mm L x 70 mm W x 41 mm D (6.0 in L x 2.8 in. W x 1.6 in D) 340g (12oz)
