Osram pti 35/220-240 s electronic ballast 1XHCI 35W

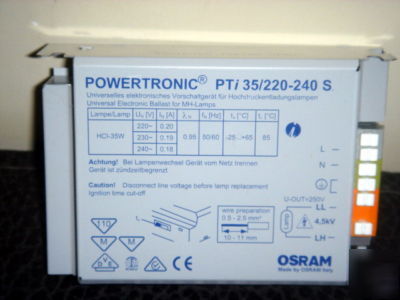

OSRAM PTi 35/220-240 S Electronic Ballast 1xHCI 35W
* "HID-ECG - not dimmable - PTi - installation in luminaires"
* Supply voltage: 220 V - 10%/240 V + 6%
* RI suppression: acc. to EN 55015
* Safety acc. to EN 61347-2-12
* Line harmonics: acc. to EN 61000-3-2
* Immunity: acc. to EN 61547
* Luminous flux factor 1 compared with CCG operation
* Instant hot restart not possible
* Standard: acc. to EN 55015 | EN 61000-3-2 | EN 61547 | acc. to EN 61347-2-12
* Operating frequency : 165 kHz
* TH full width at half maximum : 150 s
* Maximum cable capacity ECG/lamp : 120 pF
* Nominal voltage : 220-240 V
* Ignition voltage : 4.5 kVp
* Max. no. of ECGs on circuit breaker 10A : 15
* Max. no. of ECGs on circuit breaker 16A : 26
* Mounting hole spacing, length : 99/64 mm
* Wire preparation length, output side 10..11mm
* Wire preparation length, input side 10..11mm
* Max. cable length - system in meters : 1.5m
* Max. casing temp. in case of fault : 110 C
* Maximum operating temperature at the Tc : 80 C
* Ambient temperature range : -25 ... +65 C
* Relative humidity : 5 ... 85 %
Our Ref. G400/HD326/PM150/OP13
