New nortrac epa-iv tractor w/frt-end ldr & backhoe 40HP-

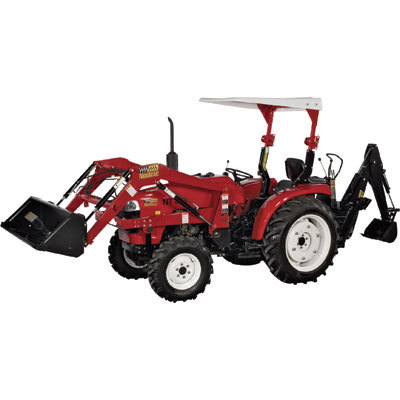

NorTrac EPA-IV Tractor w/Frt-End Ldr & Backhoe 40HP-New
Powerful EPA IV 40 HP tractor is equipped with a double-stage clutch, LIVE PTO and Category 1 3-pt. hitch. 4-cylinder, water-cooled four-stroke engine with a max. 2200 RPM. 8 forward, 2 reverse speeds. 4 wheel drive. 540/720 PTO speeds. Includes a front-end loader and multi-purpose backhoe for total versatility. Min. Operating Weight (lbs. (kg)): 3,993 (1,815), Wheel Base (in. (mm)): 72.2 (1,833.5), Wheel Tread Width - Front (in. (mm)): 47.25 (1,200), Wheel Tread Width - Rear (in. (mm)): 45.3-57.1 (1,150-1,450), Front Axle Ground Clearance (in. (mm)): 11.5 (292), Tires - Front: 7.50-16, Tire Inflation - Front (PSI): 11.6-17.4, Tires - Rear: 11.2-28, Tire Inflation in Field - Rear (PSI): 11.6 to 17.4, Tire Inflation in Transportation - Rear (PSI): 17.4 to 29, Turning Radius (in.): 165.35, Nominal Speed - Forward 1st (MPH (KM/H)): 1.32 (2.125), Nominal Speed - Forward 2nd (MPH (KM/H)): 1.67 (2.683), Nominal Speed - Forward 3rd (MPH (KM/H)): 2.70 (4.362), Nominal Speed - Forward 4th (MPH (KM/H)): 4.3 (6.923), Nominal Speed - Forward 5th (MPH (KM/H)): 5.61 (9.04), Nominal Speed - Forward 6th (MPH (KM/H)): 7.09 (11.417), Nominal Speed - Forward 7th (MPH (KM/H)): 11.54 (18.584), Nominal Speed - Forward 8th (MPH (KM/H)): 18.3 (29.465), Nominal Speed - Reverse 1st (MPH (KM/H)): 1.23 (1.984), Nominal Speed - Reverse 2nd (MPH (KM/H)): 5.24 (8.438), PTO Speed (RPM): 540/720, PTO Power (HP): 31.5/36, 3-Pt. Hitch Type: Category 1, Clutch: 2-Stage, Power Steering Pump Pressure (PSI): 2,320, Power Steering Pump Volume (GPM): 12, Engine Type: Four cylinder, vertical, water-cooled, 4-stroke, Engine Displacement (CI): 124, Rated Power (HP): 40, Rated RPM: 2,350, Fuel Capacity (gal.): 8, Engine Oil (gal. (qt.)): 1.587 (6.35), Front Drive Axle (gal. (qt.)): 1.75 (7), Transmission (gal. (qt.)): 4.75 (19), Hydraulics/Category 1 Hitch (gal. (qt.)): 2.12 (8.48), Radiator (gal. (qt.)): 1.85 (7.4) Rated flow: 10 GPM Maximum pressure: 2200 PSI Lift cylinder dia.: 2.25in. bore Attachment cylinder dia.: 2.25in. bore Maximum lift height to pivot pin: 8ft., 5in. Lift height under level bucket: 8ft., 11in. Clearance with bucket fully dumped: 7ft., 5in. Reach at maximum lift height: 2ft. Maximum dump angle: 45 Reach with bucket on ground: 5ft., 4in. Maximum rollback angle: 25 Digging depth: 5in. Overall height in carry position: 5ft., 2in. Bucket size: 5ft. Lift capacity to maximum height at pivot level: 1500 lbs. Backhoe comes with a 16in. wide bucket Bucket capacity: 1.33 cu. ft. Rotates 180 Backhoe includes PTO pump kit and reservoir Maximum digging depth is 8 feet Double acting cylinders provide greater swing force and smoother operator control Total length with the loader and backhoe of 213 inches
