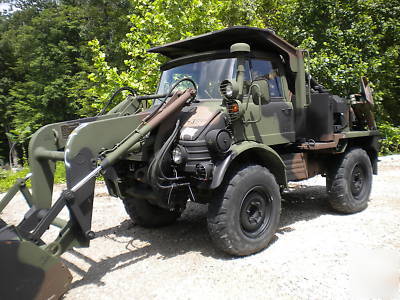

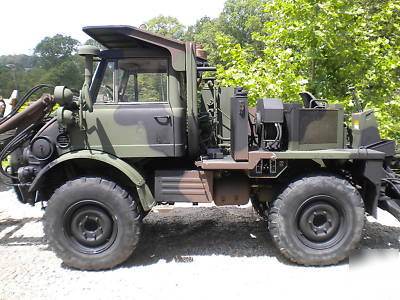

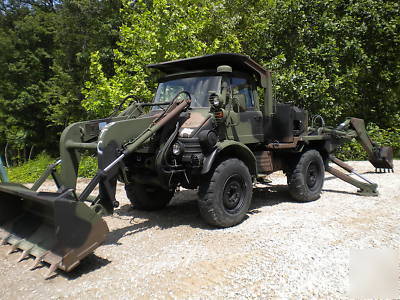

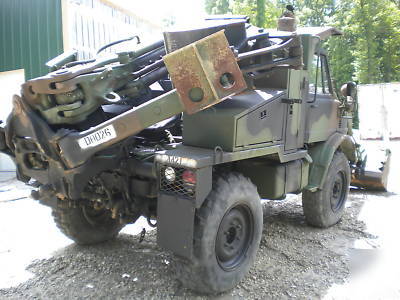

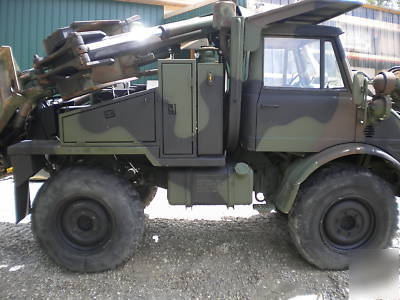

Military see tractor unimog 1987 backhoe front loader

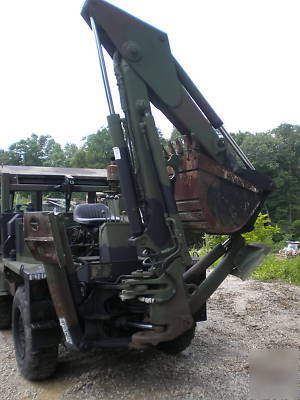

HERE IS A LINK TO A VIDEO OF THE BACKHOE OPERATING.
http:// /watch?v=Gwf71XyanhU
Below is some specs on the truck.
Overall Length .............................................................................................................. 250 in. (6.35 m)
Overall Height ............................................................................................................... 102 in. (2.60 m)
Overall Width ................................................................................................................. 96 in. (2.44 m)
Track . ............................................................................................................................. 64 in. (1.63 m)
Wheel Base.................................................................................................................... 93.7 in. (2.39 m)
Turning Circle Diameter.....................................................................................................35.8 ft (11.7 m)
Angle of Approach (SEE) ............................................................................................................. 40 degrees
Angle of Departure (SEE) ... ...........................................................................................................32 degrees
Maximum Highway Speed (SEE/HMMH) ......................................................................... 50 mph (80 km/h)
Traverse Up/Down Inclines ............................................................................................. 60 percent
Traverse Side Slopes ............................................................................................................. 30 percent
Fording Depth ........................................................................................................................ 30 in. (0.76 m)
Ground Clearance .................................................................................................................. 17 in. (0.43 m)
Model ............................................................................................................................................... OM 352
Type .......................................................................................................... Four-stroke diesel, direct injection
Cylinders ............................................................................................................................ Six, vertical in-line
Bore..................................................................................................................................... 3.82 in. (97 mm)
Stroke....................................... .......................................................................................... 5.04 in. (128 mm)
Displacement ........................................................................................................... 346 cu in. (5675 cu cm)
Compression Ratio ................................................................................................................................. 17:1
Power Output ............................................................................................................... 110 hp (81 kW/1 min)
Nominal Engine Speed .................................................................................................................... 2800 rpm
Maximum Torque.............................................................................................................. 234 lb.-ft (318 N m)
Low Idle Speed ........................................................................................................................... 700-750 rpm

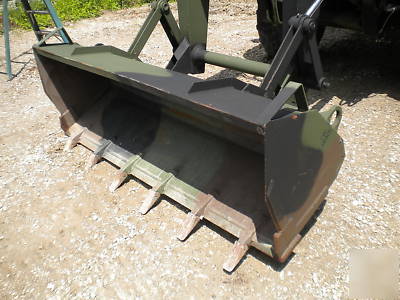

Bucket Width ....................................................................................................................... 81.5 in. (2.07 m)
Lift Height ................................................................................................................................ 98 in. (2.5 m)
Breakout Force ..................................................................................................................6,000 lb. (2722 kg)
Lift Capacity.................................................................................................................... ..3,300 lb. (1497 kg)
Bucket Capacity...................................................................................................................0.75 cu yd (573 1)
Bucket Capacity ...................................................................................................................... 7 cu ft (1981 1)

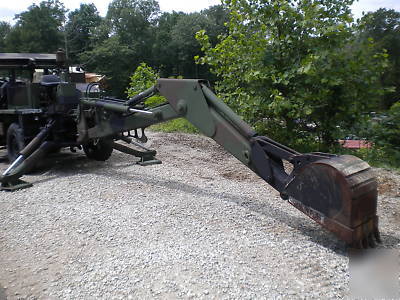

Digging Depth ....................................................................................................................... 14 ft (4.26 m)
Digging Radius ................................................................................................................. 17 ft 8 in. (5.39 m)
Loading Height .......................................................................................................................... 11 ft (3.35 m)
Swing Arc ....................................................................................................................................180 degrees
Digging Force ...................................................................................................................10,000 lb. (4536 kg)
