35" swg 35" cc mori seiki sl-6B cnc lathe, fanuc 11TE,

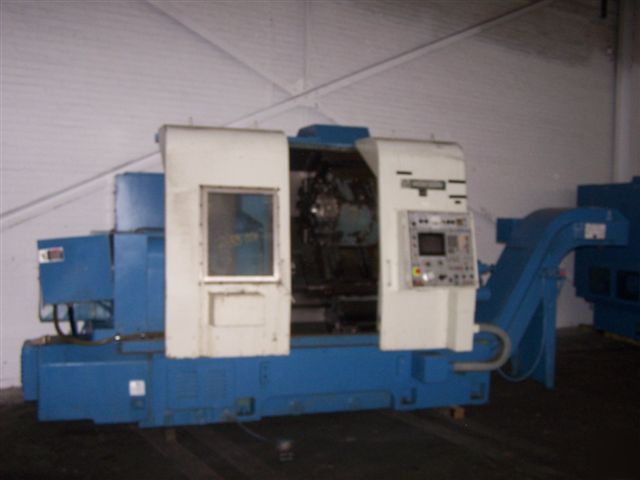

35" Swg 35" cc Mori Seiki SL-6B CNC LATHE, Fanuc 11TE,
35" Swing 35" Centers Mori Seiki SL-6B CNC LATHE, Fanuc 11TE, Tailstock, Chip Conveyor
MORI SEIKI MODEL: SL-6B CNC TURNING CENTER
SWING OVER BED ........................... 35.0"
SWING OVER FRONT COVER ................... 27.5"
SWING OVER CROSS SLIDE ................... 22"
MAX. DISTANCE BETWEEN CENTERS ............ 35.43"
HOLE THRU SPINDLE......................... 6.3"
SPINDLE NOSE.............................. A2-11
TURRET HEAD............................... 12 SIDED
SPINDLE SPEEDS............................ 10 TO 1,010 RPM
SPINDLE MOTOR............................. 40 / 50 HP
Z-AXIS TRAVEL............................. 33.9"
X-AXIS TRAVEL............................. 13.7"
TAILSTOCK SPINDLE DIA. ................... 4.33"
TAILSTOCK SPINDLE TAPER .................. MT#4
APPROX. MACHINE SIZE WITH CHIP CONVEYOR... 220"x77"x95
APPROXIMATE MACHINE WEIGHT................ 19,800 LBS
PLEASE USE THE FOLLOWING LINK ON YOUTUBE TO VIEW A VIDEO OF THIS MACHINE UNDER POWER.
http:// /watch?v=ogUN5PyPc_0
