Woodstone cascade gas-fired commercial rotisserie
~ used (but in great condition)~

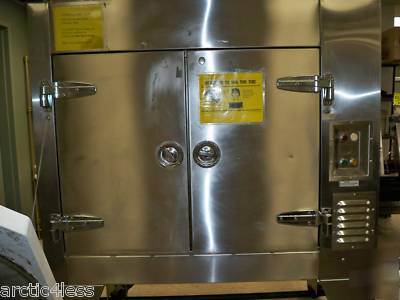

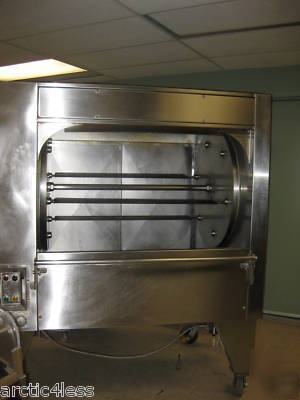

The body of the Cascade Rotisserie is constructed of 16-gauge polished stainless steel (#4 finish). The rotisserie drive features a two-stage gearbox with a 600:1 reduction and comes standard with six 44 inch stainless steel angle spits, giving the rotisserie a 36-42 chicken capacity. The rotisserie is heated by two burners: a showy and powerful adjustable wall of radiant flame at the front of the cabinet and an overhead IR burner.

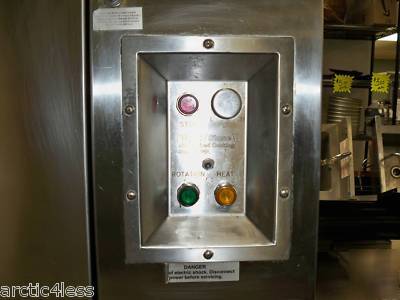

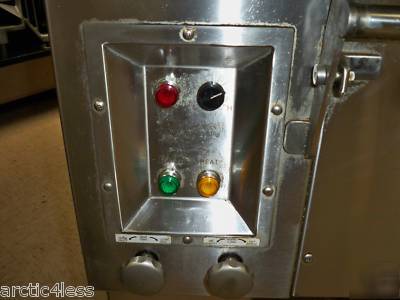

The Cascade features a constant water bath drip tray with a 2-inch removable stand pipe for easy cleaning. The standard rotisserie has front and rear controllers and rear loading doors. A bump-bar style shutoff on the front of the rotisserie facilitates easy front loading or unloading.
The controller and motor can be located on either side of the unit; this must be specified at the time of order. The Cascade is easily serviced via an access panel located on the controller side of the unit. The unit is ETL listed to ANSI Z83.11-2002 and sanitation listed to NSF Standard 4.
Provide 115 VAC, 15 Amp outlet (appliance is 5 Amp rated).
Note: a grounded cord and plug (three prong) is provided by WoodStone for a standard 115 VAC outlet.
Provide incoming water supply equipped with a 1/4 N.P.T. (male) fitting.
1 1/2 inch slip-fit connection. Connect to floor sink (grease trap). The drain is located in the
D - Gas Rotisserie-Provide 175,000 BTU Natural Gas or 185,000 BTU Propane (LP) input.

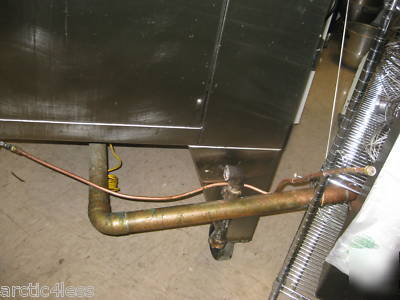

Rotisserie gas inlet is a 1 N.P.T. (female) fitting. The maximum inlet pressure is 0.5 PSI.IR BURNER
The Rotisserie requires a Type 1 exhaust hood installed in accordance with NFPA 96 and all relevant national and local codes.
This is a beatiful unit, one to not pass up. Brand new cost about $21,000.00
CRATING will be available for an extra fee.
