48" tbl 2HP spdl bridgeport series i vertical mill, bri
48" Tbl 2HP Spdl Bridgeport Series I VERTICAL MILL, BRI

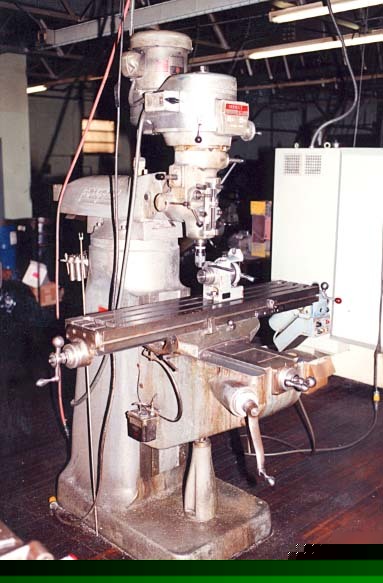

48" Table 2HP Spindle Bridgeport Series I VERTICAL MILL, BRIDGEPORT POWER FEED
9" X 42" BRIDGEPORT VERTICAL MILL
TABLE WORKING SURFACE................. 9" X 48"
NUMBER OF T-SLOTS..................... 3
RANGE: LONGITUDINAL (X)............... 26-1/2"
CROSS (Y)...................... 12"
VERTICAL, KNEE (Z)............. 16"
QUILL.......................... 5"
MAX/MIN DIST. SPINDLE NOSE TO TABLE... 18-1/2"/ 2-1/2"
MAX/MIN DIST., CENTERLINE OF SPINDLE
TO FACE OF COLUMN.................... 18-3/4"/ 6-3/4"
RAM TRAVEL............................ 12"
HEAD TILT, LEFT AND RIGHT............. 45 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY.... 45 DEGREES
(3) POWER QUILL FEEDS................. .0015, .003, .006
INFINITELY VARIABLE SPINDLE SPEEDS,
TWO RANGES........................... 60-500 RPM
SPINDLE TAPER......................... R-8
MAXIMUM COLLET CAPACITY............... 3/4"
