Fluke 43B quality power analyzer
Fluke 43B Quality Power Analyzer
* Voltage, current, and power harmonics
* Total harmonic distortion (THD)
* Phase angle of individual harmonics
* Watts, power factor, displacement power factor, VA and VAR
* Voltage and current waveforms
* Continuously measure volts and amps on a cycle-by-cycle basis for up to
Line voltage adapter/battery charger included
MIL 28800E, Type 3, Class III, Style B
232 x 115 x 50 mm (9.1 x 4.5 x 2 inches)
600V rms from any terminal to ground
3 years parts and labor on Fluke 43, 1 year on accessories
Ranges: 5.000V, 50.00V, 500.0V, 1250V*
Ranges: 50.00A, 500.0A, 5.000 kA, 50.00 kA
Ranges: 250 W, 2.50 kW, 25.0 kW, 250 kW, 2.50 MW, 250 MW
Displacement Power Factor, DPF
Range: 0.00 to 0.25 Accuracy: Not specified
Range: 0.25 to 1.0 Accuracy: 0.04
Accuracy: (3% +2 counts) to (15% +5 counts)
Accuracy: (3% +8 counts) to (5% +8 counts)
Accuracy: (5% +2 counts) to (30% +5 counts)
Ranges: 40 Hz to 70 Hz fundamental
Line voltage, current, frequency
Watts, VA, VAR, PF, DPF, frequency
THD, harmonic voltage, (or current, or power), frequency, % of total, phase
Ohms, diode, continuity, capacitance
DC voltage, dc current, ac voltage, ac current, frequency, pulse width, phase, duty cycle, peak max, peak min, peak min-max, crest factor
20%, 50%, 100%, 200% above or below normal voltage
Min voltage and max voltage at cursor
Ranges: 10V, 25V, 50V, 125V, 250V, 500V, 1250V
Ranges: 1A, 5A, 10A, 50A, 100A, 500A, 1000A
Ranges: 1s, 5s, 10s, 50s, 100s, 5 min
Cursor readings, Current at cursor
Ranges: 12.5A, 25A, 50A, 125A, 250A, 500A, 1250A, 2500A, 5 kA
Ranges: 4 to 235 pixels (1 pixel = inrush time/250)
Voltage channel [1]: 20 MHz at inputs, 1 MHz with TL24 Leads
Current channel [2]: 15 kHz at inputs, 10 kHz with 80i-500s Probe
dc, ac, ac+dc, peak, peak-peak, frequency, duty cycle, phase, pulse width, crest factor
Ranges: 500.0W, 5.000 kW, 50.00 kW, 500.0 kW, 5.000 MW, 30.00 MW
Ranges: 50.00 nF, 500.0 nF, 5.000 F, 50.00 F, 500.0 F
Ranges: -100.0 C to 400.0 C, -200.0 F to 800.0 F
Optically Isolated RS-232 Interface
Supports HP LaserJet, DeskJet, Epson FX/LQ and Postscript printers with optional PAC91 Printer Adapter Cable

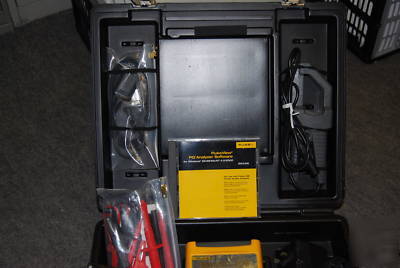

FlukeView Power Quality Analyzer Software included

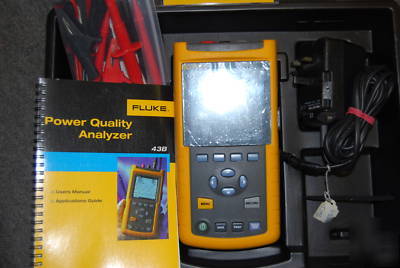

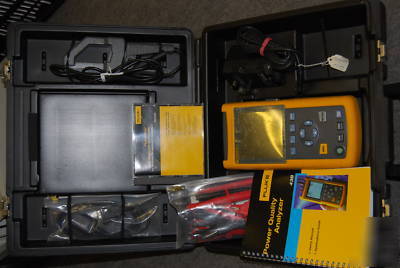

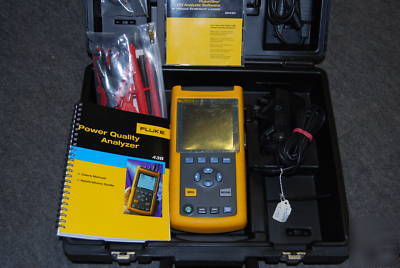

This unit is sold fully checked and working complete with operator/user manual and all standard accessories as per the pix.

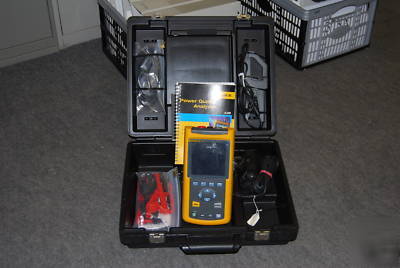

As you can see from the picture it is in excellent cosmetic condition
If you have any more questions please do not hesitate to contact us.
