Control system cycle-heaters vacuum forming machine

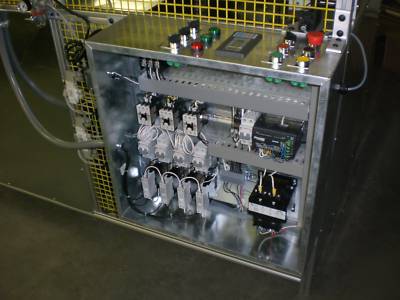

THIS CONTROL SYSTEM WILL HANDLE 4-6 DIFFERENT HEATING ZONES, EACH ZONE UP TO 20 AMPS, 220 OR 480 VOLTS
CONTROL OF EACH ZONE IS PROVIDED BY PERCENTAGE TIMERS RUN BY AN AUTOMATION DIRECT PLC
THE PLC ALSO PROVIDES FOR A SOFT START SEQUENCE REDUCING POWER USAGE BY ABOUT 30%
INPUT OF PERCENTAGE TO EACH HEATER IS DONE VIA AN INCLUDED DV-1000 OPERATOR INTERFACE
EACH ZONE IS CONNECTED TO A CARLO GAVAZZI SOLID STATE RELAY
WE INCLUDE 10 FEET OF HIGH TEMPERATURE WIRE FROM EACH ZONE
CONTROL PANEL WILL ALSO PROVIDE CONTROL FOR MANUAL -SETUP-AUTOMATIC OPERATION OF YOUR MACHINE
HAS BUILT IN ALL THE TIMERS AND FUNCTIONS FOR AN EFFICIENT OPERATION .
CLEARLY DEFINED TERMINAL BLOCK ALLOWS YOU TO CONNECT YOUR OWN PNEUMATIC AND VACUUM VALVE
SYSTEM IS SHIIPED READY TO RUN, JUST CONNECT YOUR POWER AND VALVES
WE INCLUDE SCHEMATICS AND OPERATING MANUAL
GREAT FOR RETROFITS OF OLDER THERMOFORMING MACHINES OR FOR THOSE BUILDING THEIR OWN
OTHER CONFIGURATIONS AVAILABLE
THIS SYSTEM IS COVERED BY A 12 MONTH WARRANTY
IF YOU NEED FURTHER INFORMATION PLEASE CONTACT US AT (***)-860-1741
ANOTHER FIELD PROVEN SYSTEM FROM SIBEAUTOMATION.COM
IF YOU NEED WE WILL INSTALL ON SITE, FEES APPLY
WE DO COMPLETE THERMOFORMING MACHINES RETROFITS -HEATERS-CONTROLS-PNEUMATICS-CLAMPING FRAMES
