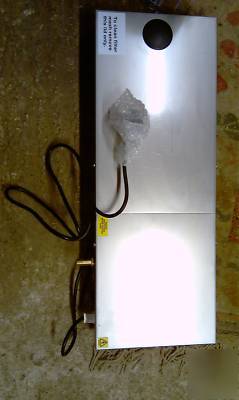

Aquamat tray MK3
Can be used to collect condensate from up to 4 x 12ft cabinets.
* 6 Litre water tank capacity
* Pump capacity:- up to 250 litres/hr @ 10m total head of drain.
* Maximum head of drain 12m
* Inlets in the sides of the tray : 2 x 1" plus 1 x 2"
* Outlet: 12mm for flexible hose connection.
* High Level Alarm option - Mark 3A please enquire.
The Aquamat Mark 3 is the ideal condensate pump tray for use in retail sales floor, under counter applications.
With its low overall height of 80mm it can fit under nearly all display cabinets. The 230V pump can remove up to 250 litres of condensate per hour against a 10m head of drain.
An optional factory fitted high level alarm is available for connection to a monitoring system if required Part AM103A.
