26" x 3HP spdl acer ultima, 3VK cnc vertical mill, anil
26" X 3HP Spdl Acer Ultima, 3VK CNC VERTICAL MILL, Anil

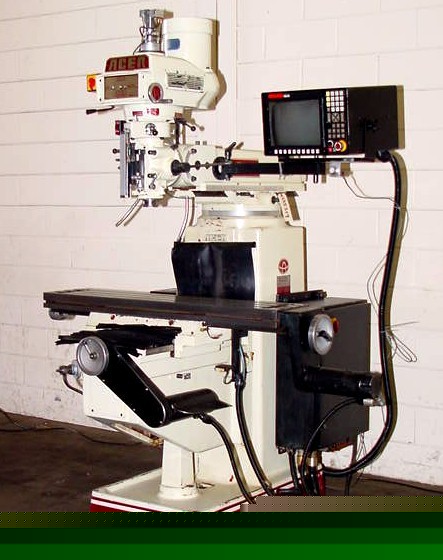

26" X Axis 3HP Spindle Acer Ultima, 3VK CNC VERTICAL MILL, Anilam 1100 Control, 2 Axis CNC 3 Three
MODEL:EVS w/ ANILAM 1100M CONTROL
2-AXIS CNC PLUS MANUAL HANDWHEELS
TABLE SIZE....................... 10" x 50"
TABLE TRAVEL (X-AXIS)............ 26"
SADDLE TRAVEL (Y-AXIS)........... 14.75"
QUILL TRAVEL (Z-AXIS)............ 5"
KNEE TRAVEL ..................... 16"
RAM TRAVEL ...................... 20"
MAXIMUM LOAD DISTRIBUTED......... 500 LBS.
SPINDLE TAPER.................... #30
SPINDLE SPEED RANGE.............. 60-4200 RPM
SPINDLE DIAMETER................. 1-7/8"
FLOOR AREA (DOORS CLOSED)........ 8' x 7'3"
HEIGHT........................... 6'9"
WEIGHT (WITH CONTROL)............ 3,050 LBS.
ANILAM 1100M CONTROL FOR BOTH CONVERSATIONAL & G-CODE
USE AS TWO AXIS CNC OR THREE AXIS DIGITAL READOUT
THE SPINDLE Z-AXIS HAS A SCALE FOR TRAVEL
TRANSITION FROM TWO AXIS CNC TO MANUAL MACHINING
PERFECT FOR A TOOLROOM OR PROTO TYPE WORK
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.
