Anritsu MP1632C digital analyzer MU163220C

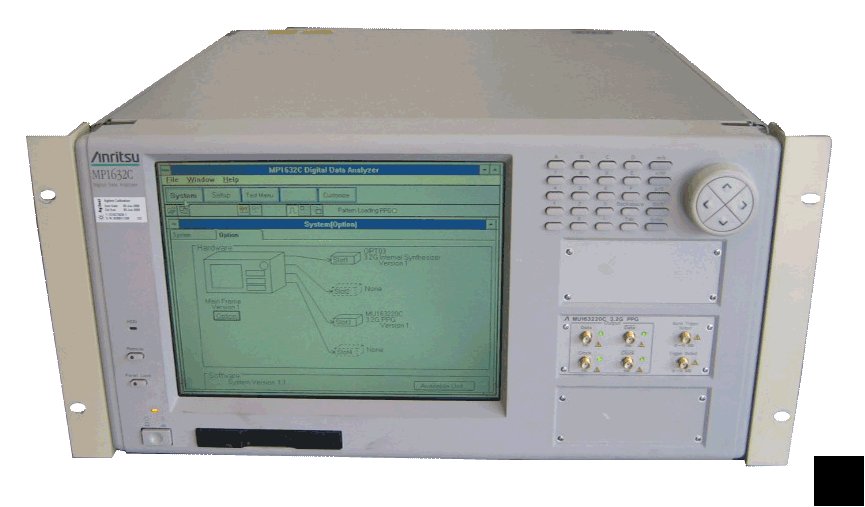

Anritsu MP1632C Digital Analyzer MU163220C
Up for sale is an Anritsu MP1632C Digital Analyzer with the following:
* 03: 3.2G Internal Synthesizer (50 MHz to 3.2 GHz)
* MU163220C: 3.2 GHz Pulse Pattern Generator with Burst Mode
The Anritsu MP1632C Digital Analyzer is a compact lightweight analyzer combining a transmitter and receiver for performing error detection of high-speed digital data up to 3.2 GHz. This analyzer can measure both continuous and burst signals, which are used in optical circuit tests which cannot be handled by conventional BERTs.
* Operating frequency: 50 MHz to 3.2 GHz (1 kHz steps)
PRBS pattern 2n-1(n:7,9,11,15,20,23,31)
Consecutive 0s pattern 2n (n:7,9,11,15)
Programmable pattern 2 to 8,338,608 bits
* Interface level: Variable, ECL, PECL, TTL, LVTTL
* Error rate definition range for eye margin measurement: 1 x 10-n (n:3 to 9)
