Fairchild 1600A 1626A vaccum regulator 3/4" npt conn

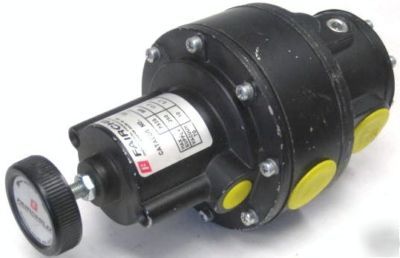

This listing is for a vaccum regulator.
* Description: Vacuum Regulator, 30" Hg - 10 psig outlet press. range, 250 psig max. inlet, 3/4" NPT conn., aluminum body
The Fairchild Model 1600A vacuum regulator is designed to control pressure in high flow systems above and below atmospheric pressure. The Model 1600A features a control sensitivity of 1" water column for use in precision processes. An aspirator tube compensates downstream pressure droop under flow conditions, while a separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing.
* Designed for high flow systems
* Supply pressure ranges from vacuum to 150 psig
* Control sensitivity of 1" water column
* Aluminum body and housing
* Can be serviced without removal from line
This is used an in good condition. Guaranteed to be in proper working order.
