Used swimex PT500 aquatherapy pool
The PT-500 Therapy Pool offers the greatest value in a SwimEx hydrotherapy pool. It is made of superior fiberglass pool construction in a one-piece design with no seams - no pool assembly is required. The PT-500 therapy pool is multi-depth. The main depth is 50 inches (127cm). Floor inserts create a 38-inch (96.5cm) depth and a deep well in the front third of the pool is 62 inches (157.5cm) deep. A 74 inch (188cm) deep well is an available option.

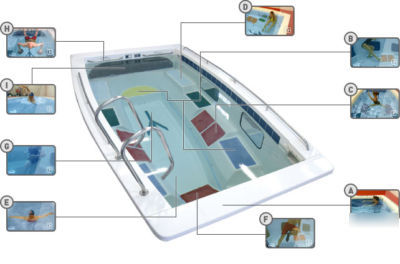

The PT-500 pool features eight distinct workout/therapy stations including plyometric pads, open & closed kinetic exercise benches and steps, and an angled running platform. The treadmill simulator (40-degree angled pad) allows a rehab patient to begin running in a limited weight-bearing environment and the adjustable floor allows the therapist to gradually increase weight-bearing activities to provide a smooth transition to land.
The PT-500 physical therapy pool circulates up to 30,000 gallons of laminar water flow per minute (113,562 lpm) - creating a wall of water with over 99 water speeds. The SwimEx pool counter current creates an ideal environment for strength training and functional activities during all phases of the rehabilitation program.
* One-piece fiberglass composite pool construction
* Filtration system (5.5-kw electric heater, 1-hp pump, 320-square foot cartridge filter (97.53 square meters)
* Recessed steps with stainless steel rails
* Air operated swimmer controls (stop/start & fast/slow)
* Remote control pool control
* Rear emergency shut-off bar
* Electronic controller - converts 240v single phase to three-phase
* Stainless steel electropolished front and rear grates
* 5-hp electric motor with paddlewheel drive system
* Start-up chemicals and water test kit
* Swimometer - water speed display and programmable timer
* Four underwater observation windows
* Two stainless steel front handrails
* Royal blue ceramic waterline tiles
* Treadmill simulator (40-degree angled pad) for stationary running
* Eight colored workout stations built-in around perimeter of pool
* Floor inserts (38-inch (96.52cm) depth) with removable pole
* Basic Water Accessories Package
* Pool Size: 7 6 x 17 6 x 6 (2.29m x 5.33m x 1.83m)
* Pit Size: 12 x 20 x different options available, contact SwimEx (3.66m x 6.1m x options available)
* Pool Weight with equipment: 3,200 lbs (1,451kg)
* Pool Volume: 2700 gal (10,219 l)
* Pool Filled Weight: 25,000 lbs (11,339kg)
* Load Bearing: 425lbs sq.ft. (2074.31 kg/m2)
