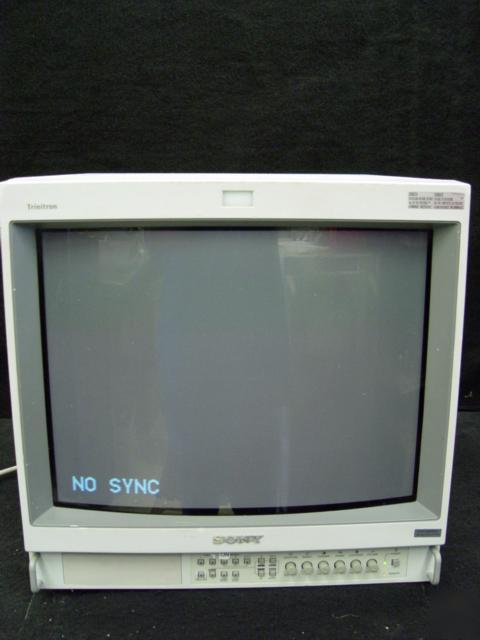

Sony 20" PVM20M2MDU trinitron color video monitor
SONY 20" PVM20M2MDU TRINITRON COLOR VIDEO MONITOR
The Sony PVM-20M2MDU is designed specifically for medical applications, the M2MD Series Monitors provide the exceptional clarity and color fidelity required for endoscopy, ultrasound, surgical and laboratory microscopy. The Sony PVM-20M2MDU medical monitor is UL-2601-1 listed. High Resolution Trinitron picture tube. On-screen menu in five languages. Knob controls of Brightness, Contrast, Aperture, Phase, Chroma and Volume.
RGB Split Screen (two RGB inputs) Analog RGB, Y/C and composite video Auxiliary 8 volt DC output
Automatic selection of standard color systems: NTSC and PAL.
PICTURE PERFORMANCE Overscan/Normal/Under 20%/7%/5% of CRT effective screen area. Picture Tube Resolution 600 TV lines at center.
Color Temperature 6,500K/9,300K/USER (3200K-10000K, factory setting is 6500K). Maximum Diagonal Viewable Area 19".
INPUTS Y/C IN 4-pin Mini DIN connector VIDEO IN BNC connector 1V p-p +/-6dB, sync negative AUDIO IN phonojack, -5dBu, more than 47kohms r/r-y, g/y, b/b-y in BNC connector R,G,B Channels 0.7V p-p +/-6dB Sync on Green 0.3V p-p negative, 75 ohms terminated R-Y, B-Y Channels 0.7V p-p, +/-6dB Y-Channel 0.7V p-p, +/-6dB (Standard color bar signal of 75% chrominance) EXT SYNC IN BNC connector, Composite sync 4V p-p +/-6dB, negative OUTPUTS Y/C OUT 4-pin Mini DIN connector VIDEO OUT BNC connector, 75 ohms terminated AUDIO OUT Phonojack, Output level 0.8W R/R-Y, G/Y, B/B-Y OUT BNC connector, 75 ohms terminated EXT SYNC OUT BNC connector, 75 ohms terminated
