Linear bearings and rail, iko#LWHK30, 21 1/4" long rail

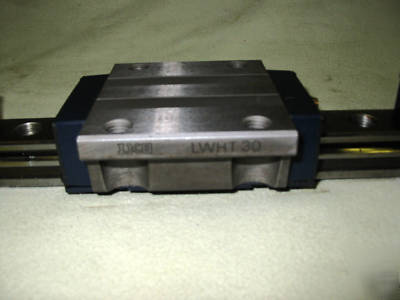

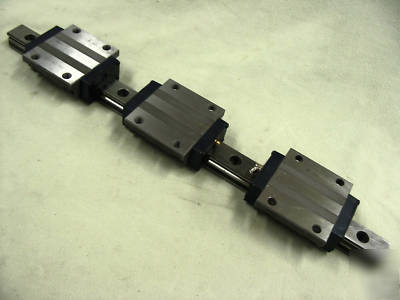

RAIL COMES WITH 3 BEARING GUIDE BLOCKS. 2 OF THEM ARE IKO #LWHT30 AND 1 IS IKO #LWH30, THE ONLY DIFFERENCE IS THE HOLES ARE NOT THREADED ON THE LWH30.
RAIL IS 25MM TALL, 28MM WIDE, IT IS 21 1/4' LONG WITH 7 - 9MM MOUNTING HOLES, THESE HOLES ARE COUNTER BORED FROM THE TOP
THE BLOCKS ARE 90MM WIDE X 80.5MM LONG AND HAS 4 - M10X1.5 TAPPED HOLES IN THEM, EXCEPT FOR THE BLOCK THAT HAS CLEARANCE HOLES, THEY ARE 9MM
