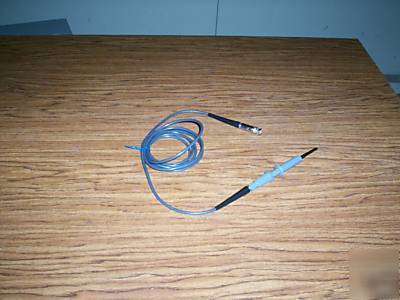

Tektronix P6007 passive probe w/ 013-0071-00 screw-on
* Input Capacitance : approx. 2.2pF (6 ft. cable)
* Compensation Range : 15pF to 55pF
The P6007 is a low input-capacitance, high-voltage passive probe with a signal attenuation of 100X. It is designed for oscilloscopes having an input resistance of 1-megohm and input capacitance of 15 to 55 pf.
The P6007 consists of a probe-body assembly and a 3.5, 6, 9 or 12-foot cable.
Compensation is accomplished by turning the probe body and tip assembly while holding the knurled section at the base of the probe. There is no separate compensating box with this probe.
1.5 kv dc or rms (2.1 kv peak or 4.2 kv peak-to-peak). maximum voltage must be derated at higher frequencies.
The 9.9 megohm resistor has been factory adjusted in the probe body for the best transient response.
The probe will operate normally at temperatures up to 75 C
