Samsung / quad qsa-30A smt/smd pick & place machine qsa
Samsung / Quad QSA-30A SMT/SMD Pick & Place Machine QSA

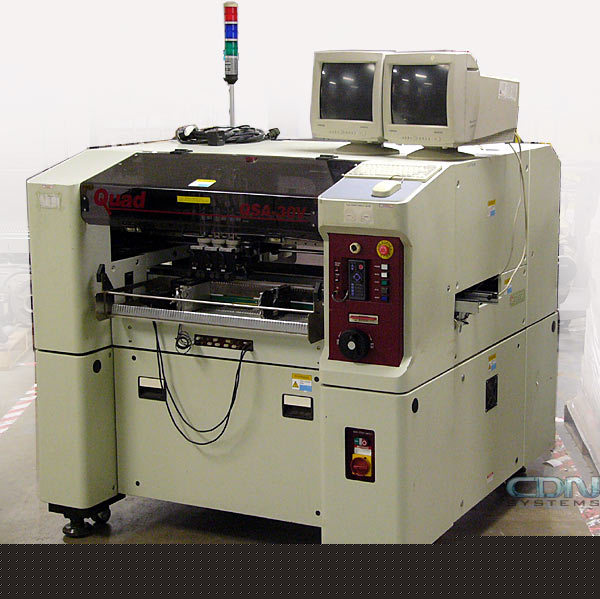

The QSA-30A powers up, the machine vision illuminator lights up, and the computer boots straight into the machine software. The machine vision camera system is working. We were able to get the gantry to move the (three) p&p heads all over the machine, and the pneumatics were heard operating when we used the manual machine controls screen. No other testing was done.
* Quad QSA-30A machine with computers & control hardware
* Teach Box teaching pendant
* QSA-30 Maintenance Manual
* QSA-30A Technical Drawings
* Vision System for QSA-30A Handbook
* QSA-30 PCB Programming Procedures
* QSA-30 System Parameters Procedures
* Maximum Placement Rate: 13,000 components per hour
* Feeder capacity: 76 (for 8mm feeders, capacity decreases with wider tapes)
* Number of placement spindles: 3
* Placement accuracy: 0.08mm (QFP) 0.1mm (chip)
* Board size max.: 18" x 16"
* Board thickness: 0.38mm to 4mm
* Board clearance: 18mm (bottom) 14.5mm (top) 2mm (side)
* Machine power requirements: 120VAC 20A 50/60Hz + Compressed air
