> 20" thrt 13" h scotchman vc-20 vertical band saw, 2 hp,
20" thrt 13" h scotchman vc-20 vertical band saw, 2 hp,
20" Thrt 13" H Scotchman VC-20 VERTICAL BAND SAW, 2 HP,

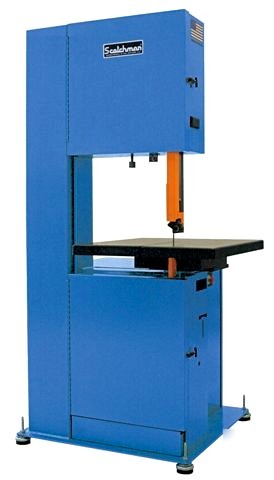

20" Throat 13" Height Scotchman VC-20 VERTICAL BAND SAW, 2 HP, Variable Speed: 125 - 2000 FPM
- One Set of High Speed, Insert Type Guide Blocks for Bands 1/8" through 1/2"
- One Set of Steel Guide Inserts for Bands 1/4", 3/8", 1/2"
- Cast Iron Work Table with Tilt (45 degrees right, 10 degrees left)
- 2 HP Variable Frequency AC Blade Drive
- Instruction and Parts Manual
- Blade Wheels: Two Aluminum with Crowned Rubber Tires
Technical Data & Specifications
Blade Specifications: 1/2" x .035" x 154" Bi-Metal
Blade Width Capacity: 1/8" to 1"
Variable Speed: 125 to 2000 SFPM (Variable Frequency Inverter)
Blade Wheels: 2-Aluminum with Crowned Rubber Tires
Voltage (Please Specify): 208, 230, 460 60 Hz 3 Ph
Dimensions: 40" L x 50" W x 81" H
