1984 nakamura tome precision slant 3 turning center

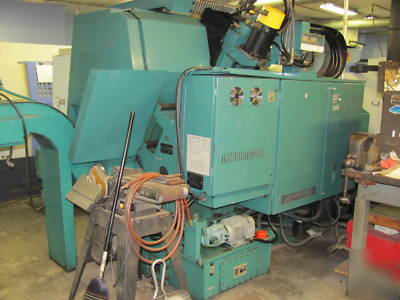

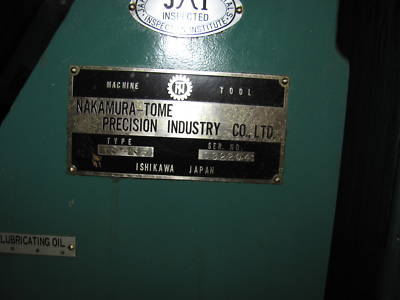

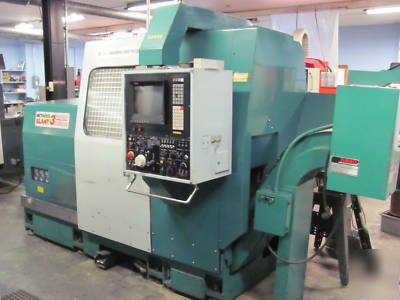

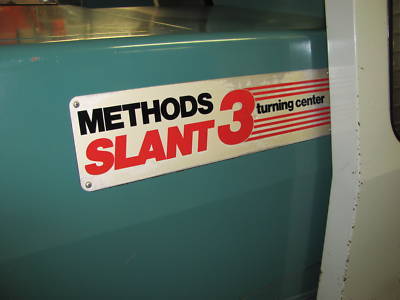

1984 Nakamura Tome Precision Methods Slant 3 Turning Center

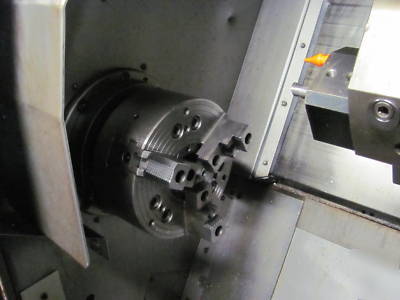

10" 3 Jaw Chuck with 2.5" Through Hole

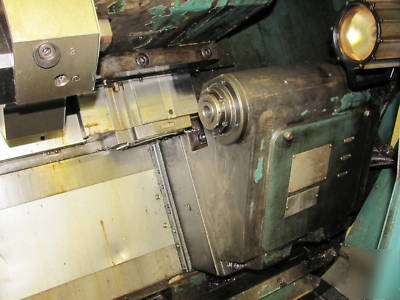

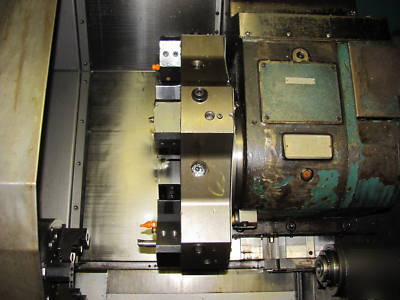

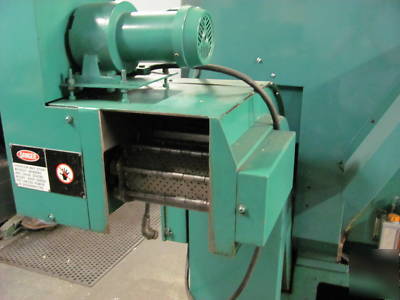

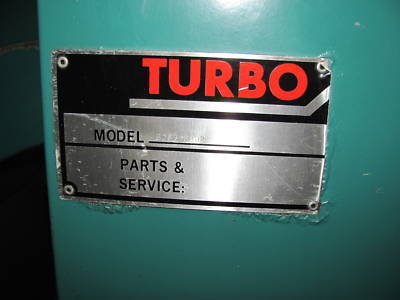

12 Station Turret, Tail Stack, Chip Conveyor
New Solenoids for Chuck and Turret
Maximum Swing Over Bed Ways: 31.1"
Maximum Swing Over Saddle: 18.9"
Maximum Machining Diameter: 15.75"
Maximum Turning Length: 21.26"
Distance Spindle Nose to Turret Face: 7.48" - 30.31"
Maximum Distance Between Centers: 28.94"
Longitudinal Carriage Travel, Z-Axis: 22.83"
Transverse Turret Slide Travel, X-Axis: 10.83"
Spindle Speeds, 2 Ranges - Variable: 35 - 3500 RPM
Maximum Bar Capacity: 2.5" Diameter
Number of Stations on Tool Turret: 12
Overall Dimensions: 116" x 78" x 86" High
