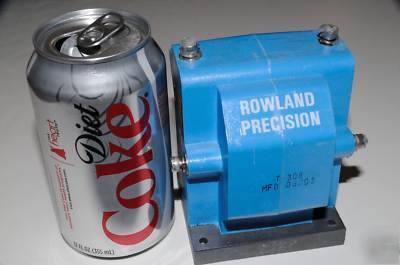

Transformer/series injection inductor rowland precision
Trigger transformer for series injection of a flashlamp circuit Specification as follows.
* Peak Output Voltage (kV) 30
* Rise Time 10% 90% ( s) 1.0
* Pulse Width 50% Amplitude ( s) 3.5
* MAX Input DC Source (Volts) 800
* Max Primary Trigger input pulse energy 4 J/P
* Turns Ratio Secondary to Primary 50:1
* Hold-off Voltage Secondary to Primary (kVdc) 30
* Saturated Inductance H sat 300
* Winding Resistance ohms 0.060
