Tektronix TDS724C 500MHZ digital oscilloscope

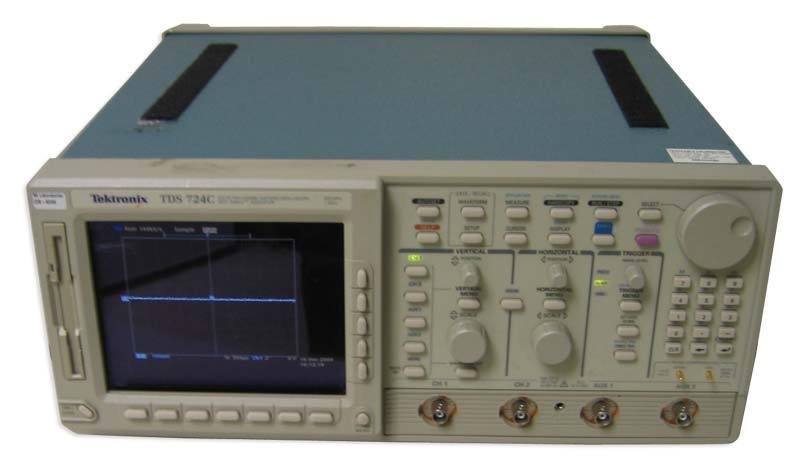

Tektronix TDS724C 500MHz Digital Oscilloscope
Up for sale is a Tektronix TDS724C 500MHz,2GSa/s,2ch Digital Oscilloscope with the following:
* Software version: FV: V5. 1.1e
* Power-on self check passed
* Option 13 : RS-232/Centronics Interface Ports
* Option 1F : 3.5" Floppy Disk Drive
* Option 2F : Advanced DSP Math (FFT)
The Tektronix TDS724C oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
* Simultaneous Channels: 2 ch
* Simultaneous Maximum Sampling Rate/ch: 500 GSa/s
* One ch. only max. sampling rate: 2 GSa/s
* Max. Single Shot bandwidth: 500 MHz
* Max. Record Length: 50000 pt/sec
* Min. Vertical Sensitivity: 1 mV/div
* Maximum Vertical Sensitivity: 10 V/div
* Input Impedance (alternate): 50 Ohm
* Maximum Input Voltage: 400 Vrms
* Main time base - lowest: 500 ps/div
* Main time base - highest: 10 s/div
* Timebase accuracy: 0.0025 %
* Trigger Source: External,Internal
* Trigger Modes: Auto,Edge,Logic,Normal,Pulse,Single
* Minimum Trigger Holdoff: 16 ns
* Minimum Glitch Trigger: 1 ns
* Display modes: Dot,Persistence,Vector
* Display Update Rate: 180000 wv/sec
