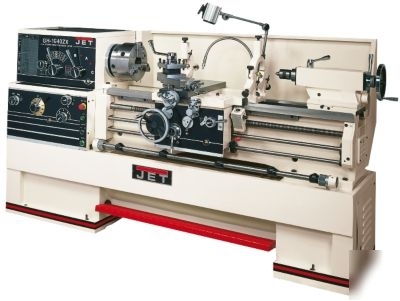

New jet gh-1640ZX large spindle bore precision lathe
Spindle Mount D1-8 Spindle Taper W/ Sleeve MT-7 (MT-5) Number Of Spindle Speeds 12 Number Of Longitudinal And Cross Feed Rates 122 Range Of Longitudinal Feeds (IPR) .0015 - .0913 Range Of Cross Feeds (IPR) .0006 - .0365 Number Of Inch Threads 61 Range Of Inch Threads (TPI) 1-5/8 - 72 Number Of Metric Threads 24 Range Of Metric Threads .05 - 20 Taper In Tailstock Spindle MT-4 Prewired 230V Distance Between Centers 40" Max Tool Size 1 x 1 Swing Over Bed 16-in Swing Over Cross Slide 10-in Swing Through Gap 25-7/8-in Length Of Gap 12-1/4-in Spindle Bore 3-1/8-in Compound Slide Travel 5-1/8-in Cross Slide Travel 9-in Carriage Travel 35-in Tailstock Spindle Travel 5-in Steady Rest Capacity 3/8-in - 7-in Follow Rest Capacity 1/2-in - 3-1/2-in Width Of Bed 13-3/8-in Range Of Spindle Speeds 25 - 1800 RPM Motor 7-1/2 HP, 3 Ph 230/460V
