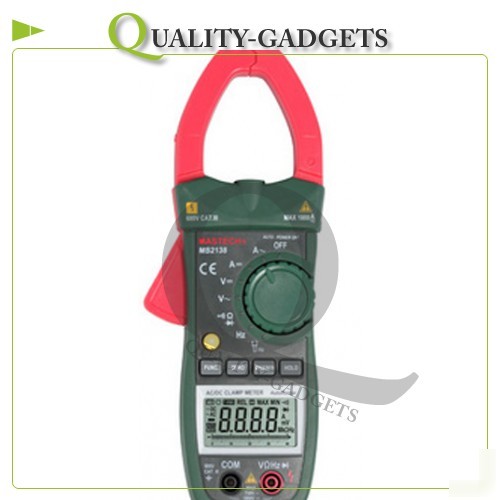

Ac dc clamp meter electrical current voltage MS2138
AC DC Clamp Meter Electrical Current Voltage MS2138
Conform to the IEC1010-1 & IEC1010-1-032 standard
Double insulation (protection class 600V CAT III and pollution degree 2)
Display: 3999 counts and 42 segments bar graph
DCV: 4/40/400V 0.8%, 1000V 1.0%
ACV: 4/40/400V 1.0%, 700V 1.2%
ACA: 400/1000A<600A 2.5%, 600A 3.0%
Resistance: 400/4k/40k/400k/4M 1.0%, 40M 2.0%
Frequency: 40Hz to 100kHz 0.1% (from test terminal), 40Hz to 400Hz 0.1% (from current clamp)
MAX. diameter for conductor: 42mm
Dimension: 225mm x 86mm x 33mm
Package not included user manual, please click here to download it!
