Drum mixer for 55 gallon drums mxb-075

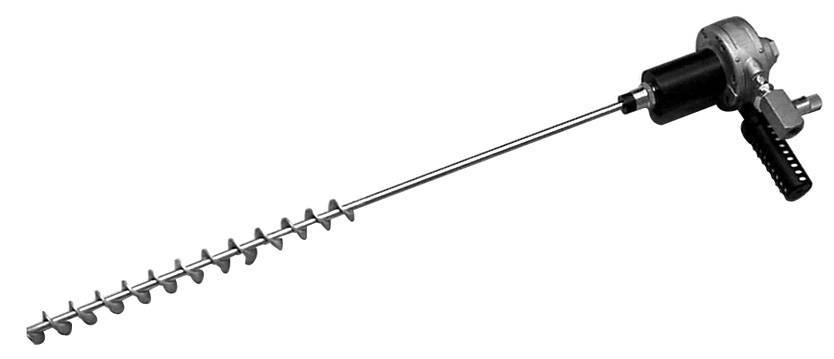

This is a 3/4" Drum Agitator that fits into the 3/4" NPT hole in standard 55 Gallon drums. It allows for uniform agitation from bottom to top of low to medium viscosity liquids, suspensions and thixotropic liquids while pumping simultaneously through the 2" opening. *3/4" HP American made Gast air motor (MXB-075). *Threaded base housing allows hands-free operation *Unique stainless 3/4" threads for long life (MXB-075 only). *Delrin resin block to keep motor free from contamination. Graduated 3/8" NPT needle valve. *Stainless Steel Shaft construction. *32" Shaft length. *Maximum air consumption - 25 CFM. *1 1/4" Diameter blade, it can be twisted into 3/4" (18mm) "Bung Hole" to maximize mixing efficiency.
The Drum Mixer MXB075 is "not" a Mixer & Pump combo unit. It is a "mixer only" and it fits into the 3/4 NPT hole allowing a seperate pump to be used to simultaneously pump Liquids through the 2" opening.
*Maximum air consumption - 25 CFM. Normal operating PSI is 78 to 80..
