Square d circuit breaker 3P 600A 600V MAL366001021
SQUARE D CIRCUIT BREAKER 3P 600A 600V

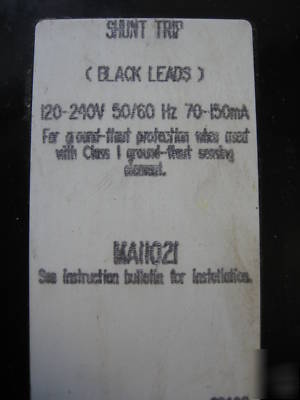

SQUARE D SHUNT TRIP CAT NO: (MA11021)
ADJUSTABLE TRIP, MOLDED CASE, THERMAL MAGNETIC; M FRAME; 600 VAC AT 50/60 HZ, 250 VDC; 600 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 42 KILOAMPERE AT 240 VAC, 30 KILOAMPERE AT 480/480 STAR/277 VAC, 22 KILOAMPERE AT 600/600 STAR/347 VAC, 14 KILOAMPERE AT 250 VDC (UL, CSA); 30 KILOAMPERE AT 415/240 VAC (IEC); TERMINAL ALUMINUM/COPPER LINE LUG, LOAD LUG; SIZE 9 INCH W X 6.5 INCH D X 14 INCH H; APPROVAL UL, CSA; MAL MODEL; AC MAGNETIC TRIP SETTING 3000 AMPERE LOW, 6000 AMPERE HIGH; ICS RATING 30 KILOAMPERE AT 415/240 VAC; INCLUDES 120/208/240 VAC SHUNT TRIP
