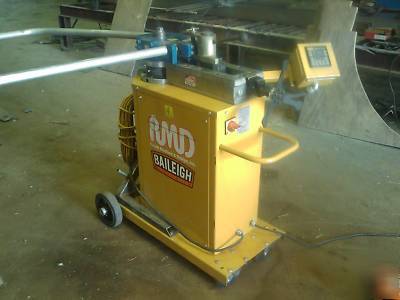

Tubing bender- rdm m-250-excellent condition-no
This item only includes the tubing bender and 220V - 1 Phase includes tooling for 1 1/2" O.D. tubing and polished shoe for aluminum which has an approximate $900 value. Its has very low use. It was used to bend 1 1/2" aluminum tubing for handrails and it did great. This is a current model and all the accessories are available.
The RMD M-250 tube bender has the strength to bend up to 2-1/2" tubing and 2" Schedule 40 Pipe, and can be programmed with up to 170 programs with up to 10 bends per program. Up to a 20' indexing table can be attached when multiple bends in variable planes are required that is great for big production runs.
RMD M-250 tube bender can bend at speeds up to 9 seconds for a 180 degree bend and can be programmed to bend up to 360 degrees, great for solid rod applications. Complex serpentine bends can be done with ease. A quick counter die release allows for quick removal of bends and allows for furthering bending pre-bent material. The counter die positioner has a numerical counter so repositioning of the counter die is a breeze when recalling bend programs. Engaging bends is as simple as pressing the forward foot pedal, and reverse pedal when complete.
Mild Steel Pipe (Schedule 40) 2"
Aluminum Pipe (Schedule 40) 2"
Stainless Steel Pipe (Schedule 40) 1.5"
Mild Steel Round Tube (Wall) 2.5" (.125)
Aluminum Round Tube (Wall) 2.5" (.156)
Stainless Steel Round Tube (Wall) 2.375" (.125)
Chromolly Round Tube (Wall) 2" (.125)
Mild Steel Square Tube (Wall) 2" (.125)
Maximum Speed to 180 Degrees 9 Seconds
Maximum Center Line Radius (CLR) 9"
Power Requirements 220V (1-Phase)
