Atmel AT91SAM7S128 arm ARM7 header dev. board jtag usb

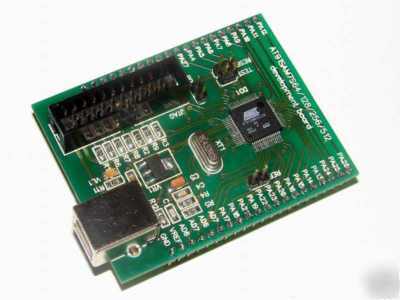

AT91SAM7S128-HB: top side
AT91SAM7S128-HB: bottom side
AT91SAM7S128-HB with ARM JTAG programmer/debugger
AT91SAM7S128-HB development board with ATMEL ARM7 AT91SAM7S128 MCU
Header board for microcontrollers AT91SAM7S64/128/256/512 ARM7TDMI-S - the universal board enabling easily and quickly to start to work with ATMEL ARM microcontrollers.
* MCU: AT91SAM7S128 16/32 bit ARM7TDMI with 128K Bytes Program Flash,32K Bytes RAM, USB 2.0, RTT, 10 bit ADC 384 ksps, 2x UARTs, TWI (I2C), SPI, 3x 32bit TIMERS, 4x PWM, SSC, WDT, PDC (DMA) for all peripherals, up to 60MHz operation
* Fully supported by wide range of ARM JTAG programmers/debuggers/emulators
* perfect solution for building custom USB peripherials
* standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
* VREF jumper for select ADC reference voltage
* TEST jumper, for SAM-BA downloading
* on board voltage regulator 3.3V with up to 800mA current
* single power supply: through USB or from extension header pin
* power supply filtering capacitor
* extension headers for all uC ports + ADC ports, RESET and power supply
* High quality PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print on top side
