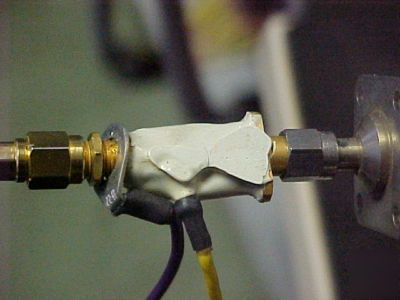

Satellite lnb microwave dc injector connector. (sma )
satellite LNB microwave dc injector connector.
Insertion loss 0.2db at 1 ghz. used for dc injection to LNBs.
Originally used to supply 300mA to an LNB from a 24V supply, (via a 33R current sense resistor)
These are functionally equivalent to the other item that I'm listing, but on a rigid former and encapsulated in some kind of potting compound.
Traces available by email if needed.
DC current carried is in the region of 400mA max
