Fluke 2686A data logging main frame
Condition: Used from our rental pool, Very good physical condition

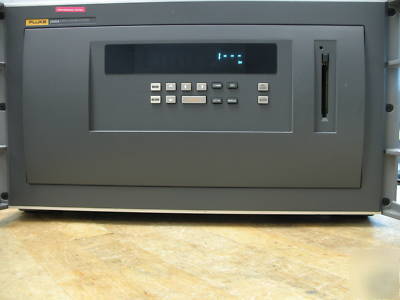

Fluke 2686A Data Logging Main Frame
The Fluke 2686A Data Logging System writes data to a memory card for easy retrieval and storage, making it ideal for remote locations and mobile or non-computer assisted data logging applications. The system comes with a 16 MB ATA memory card and supports ATA flash memory cards of up to 1 GB to provide the memory capacity you need. The 2686A is easily configured for stand-alone data logging operations by simply selecting a preset configuration from the memory card. It can also be used in networks in tandem with the 2680A to provide the extra data security of a memory card.
Standalone or networked precision multi-channel DAQ.
20 to 120 universal analog inputs per chassis.
Large scalable LAN systems using the 10BaseT/100BaseT interface and
Systems to +2,000 channels using the 2680A units.
Stand-alone data logger operation.
Throughput of more than 3,000 channels per-second per chassis
Up to 300V input isolation, 1600V transient overvoltage protection with
Superior thermocouple measurement accuracy J,K,R,S,T,N,L,U,C,B.
20 digital I/O and 8 form C, 1 Amp relay output modules for direct
Universal input conditioning for any input, on any channel, in any
combination Vdc, Vac, Ohms, frequency, RTD, thermocouple,
16MB-1GB ATA flash memory card for stand-alone operation.
Includes Fluke DAQ Software which:
. Controls all 2680 Series functions and data files
. Provides real-time and historical trending
. Also communicates with and controls Fluke 2640A,
/download/calibrators/1638781_.pdf

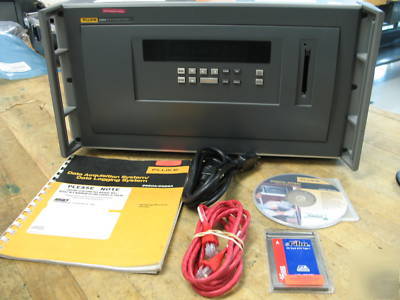

DAQ Software and Manuals on CD
8-Pin Removable Barrier Block(on unit)
