Vat mini uhv gate valve actuator pn: 01032-KE44-AEX2
VAT Mini UHV Gate Valve Actuator PN: 01032-KE44-AEX2

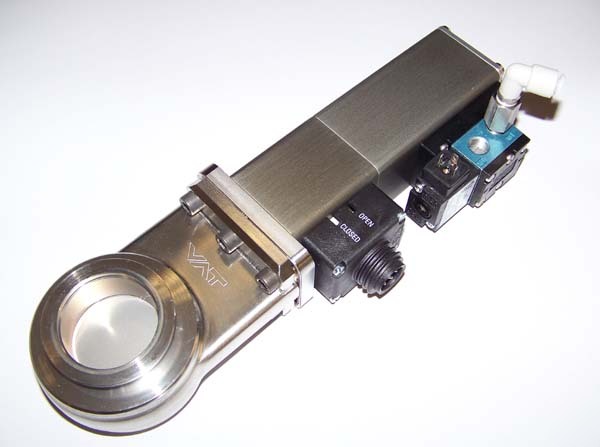

This is a Used VAT Mini UHV Gate Valve Actuator model: 01032-KE44-AEX2. This is a gate valve featuring a modular actuator and is used often in the inner workings of semi-conductor process systems. It is also lubricant free. Cosmetically, the item is in very good condition with some minor scratches but the seals and connectors look flawless. The item is missing the cable connector cover. The photos show the actual unit for sale. Only what is shown in the photos is included.
* Inside diameter (ID) : 40 (1 1/2") mm/inch
* Flange : ISO-KF (compatible with ISO 2861 T1)
* Body material : Stainless steel
* Actuator : Pneumatic actuator with position indicator with solenoid valve double acting
* Sealing technology : MONOVAT-System
* Sealing materials : Bonnet: Metal / Gate: FKM (VITON)
* Pressure range : 1 10-10 mbar - 2.0 bar (abs)
* Molecular flow conductance :160 ls-1
* Max. differential pressure closed position :2 bar
* Max. pressure on seat side during opening :0.03 bar
* Compressed air pressure min. - max. overpressure :4.5 - 7 bar 65 - 102 psi
* Volume of air cylinder :0.06 l / 0.0021189 ft3
* Closing or opening time : 0.7s
* Max. temperature : Valve body 200 C, Actuator 200 C, Position indicator 80 C
