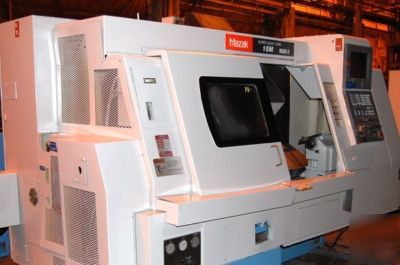

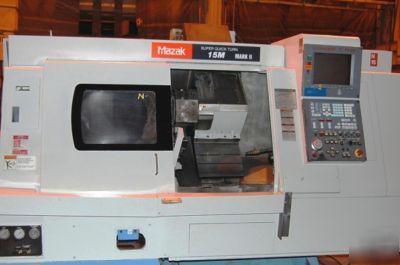

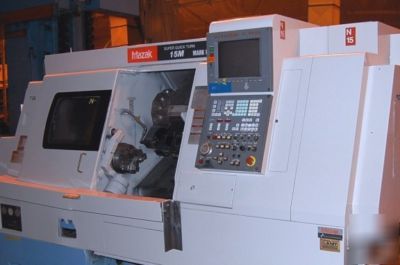

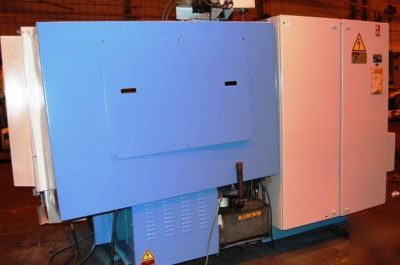

Mazak sqt-15M cnc turning center
Mazak SQT-15M CNC Turning Center
Swing Over Bed ........................ 20.90"
Swing Over Carriage ................... 15.74"
Maximum Machining Diameter ............ 11.75"
Maximum Machining Length .............. 20.80"
Maximum Bar Work Diameter ............. 2.00"
X-Axis Stroke ......................... 7.125"
Z-Axis Stroke ......................... 22.70"
Spindle Speeds ........................ 35-4000 RPM
Spindle Nose .......................... A2-6
Spindle Bore Diameter ................. 2.40"
Main Spindle Drive Motor (AC) ......... 25 HP / 20 HP
Rotary Tool Speeds .................... 120-3000 RPM
Rotary Tool Drive Motor ............... 5 HP
Tailstock Stroke ...................... 15.75"
Dimensions ............................ 170"x84"x75"
Approx. Weight ........................ 12,360 Lbs.

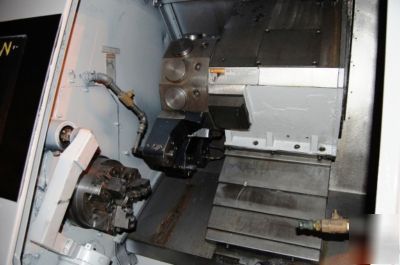

12-Position Turret With Live Milling
